✅ 600+ nits brightness,
✅ Energy-efficient design,
✅ Real-time content sync for stadiums, retail, and events.
✅ 3-Year Warranty

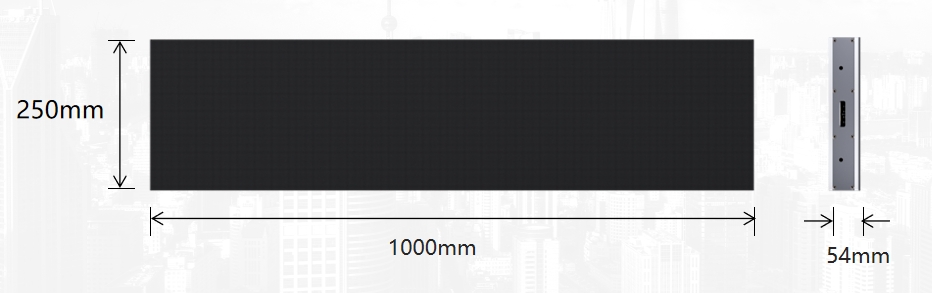

Dual sided LED display cabinet dimension: 250 x 1000 x 54 mm / 250 x 750 x 54 mm / 250 x 500 x 54 mm
Net weight: 7 kg / 5 kg / 3.5 kg

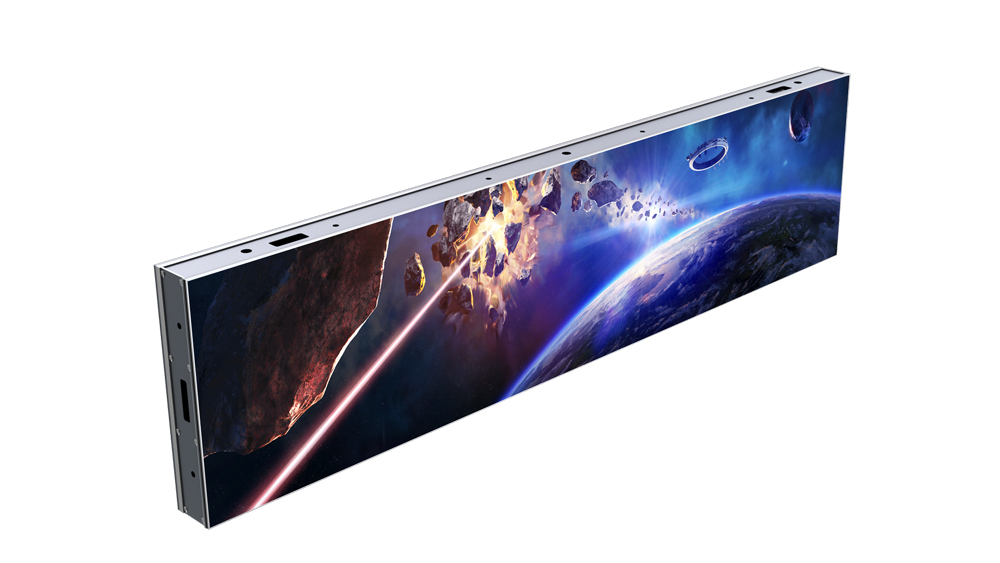

Features of 360° Dual-Sided LED Display Pro

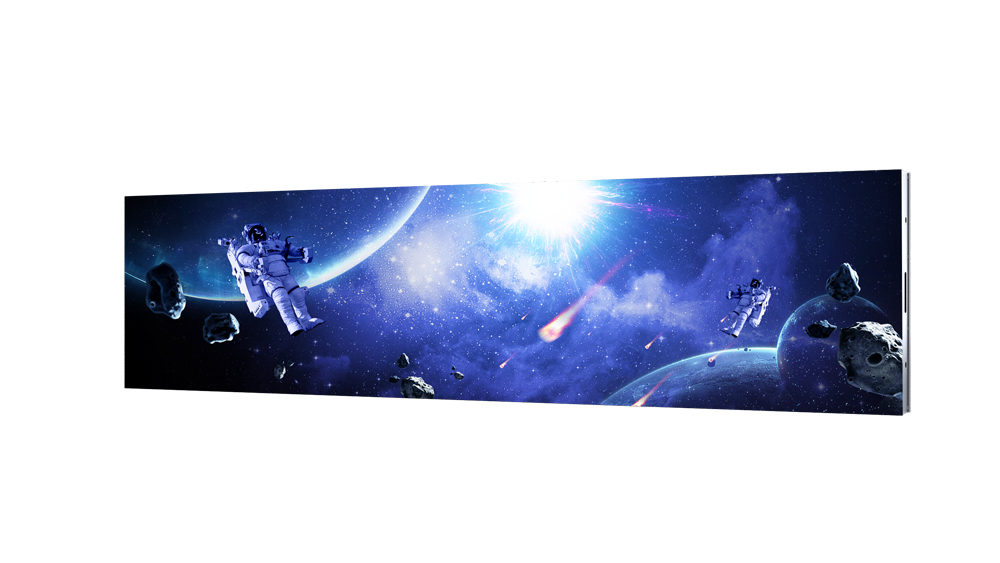

"Supports dual-sided co-display for a 360° all-around viewing experience, ensuring each side captivates and excites."

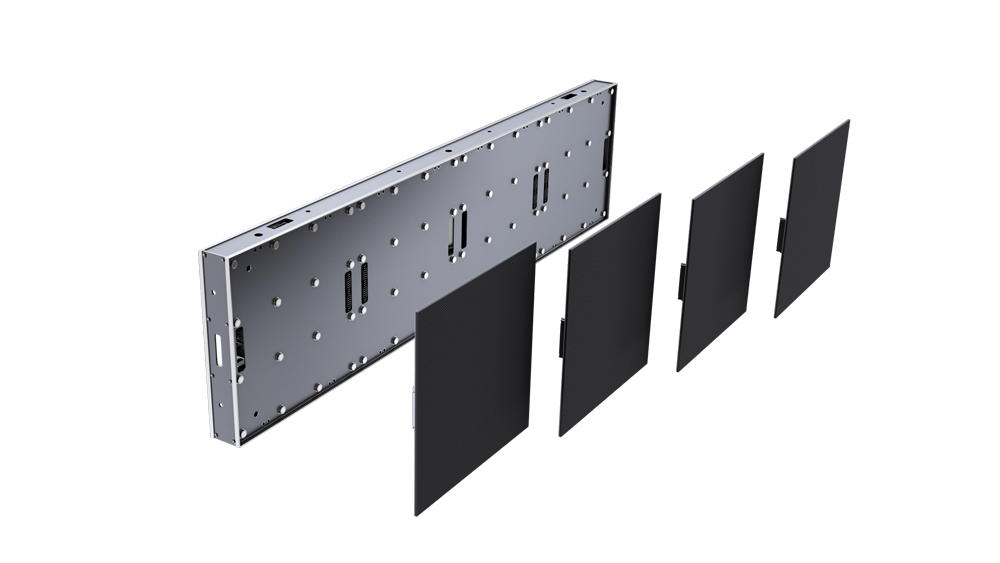

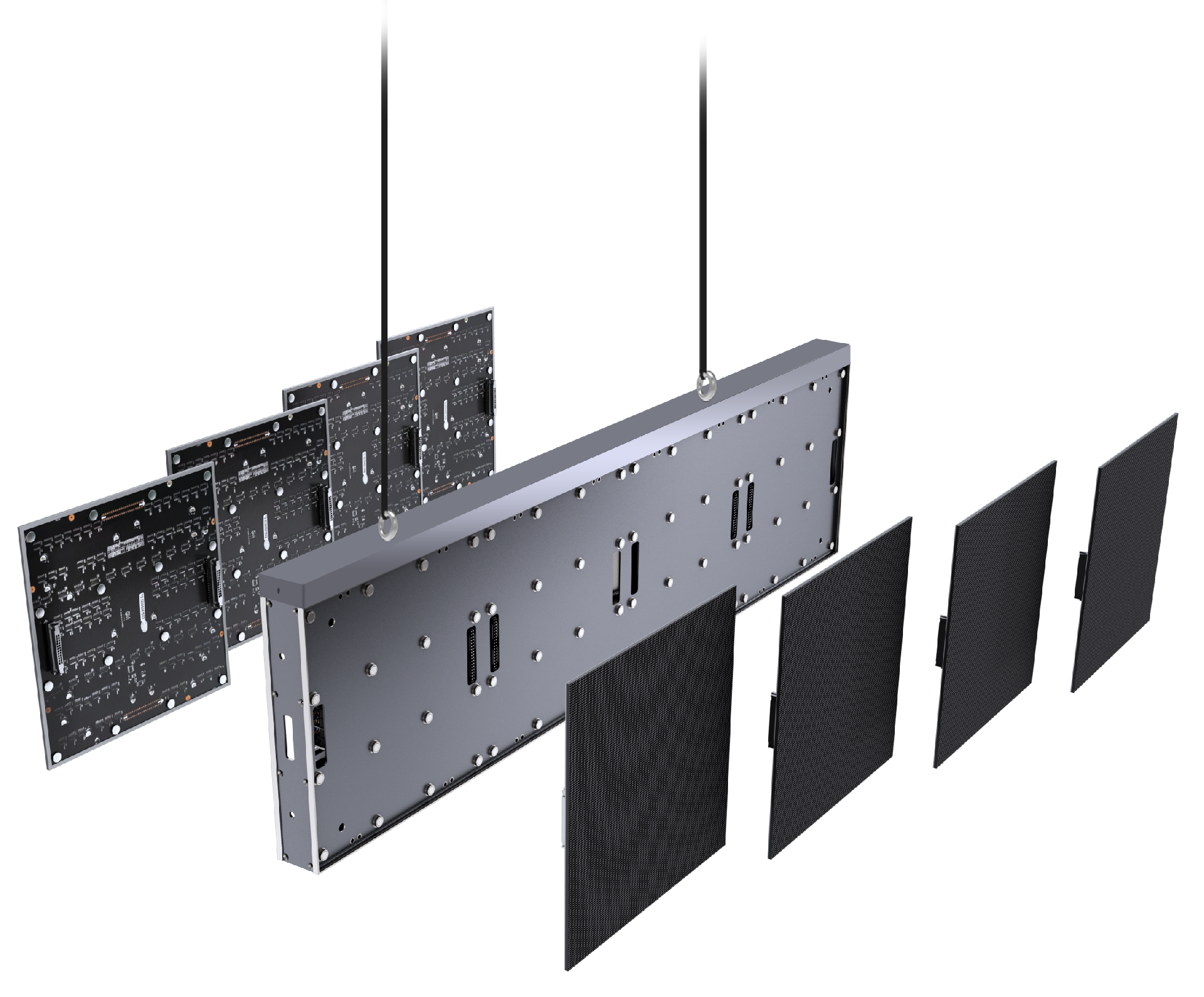

Full front maintenance, simple structure and easy to do installation: hanging installation

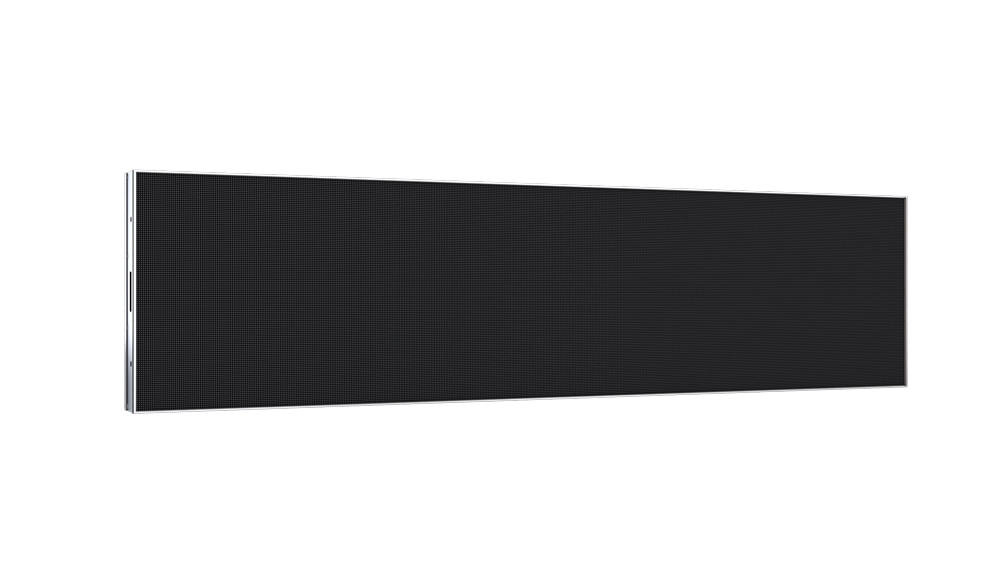

Ultra-thin thickness and light weight : only 54mm thickness ; 7kg / cabinet

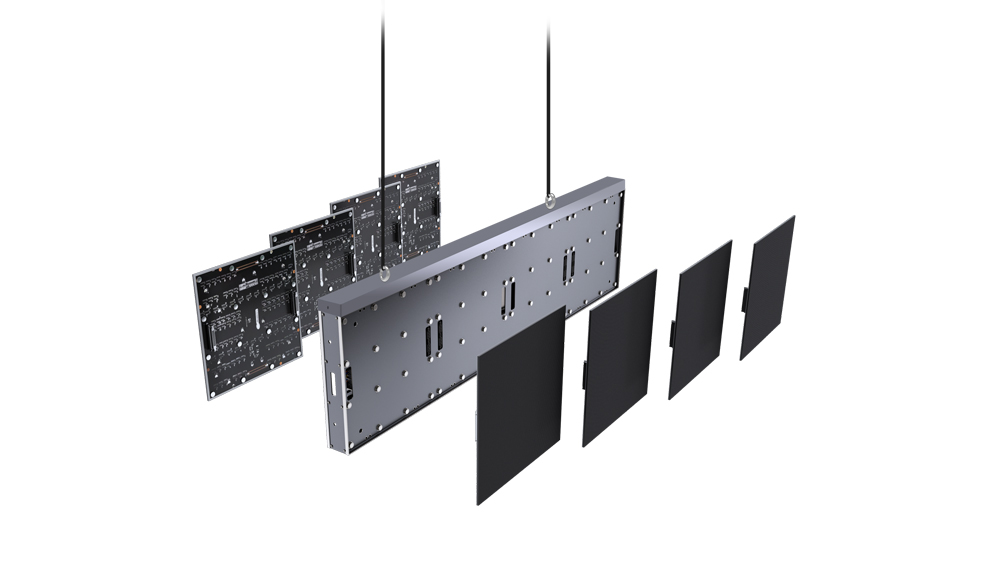

Hard connection design : Our innovative hard connection between the module and the box completely eliminates the hassle of wires, ensuring a seamless setup and a clutter-free appearance.
5V line design: with an extremely low failure rate , highly improved the reliable performance and minimal downtime.
All-aluminum cabinet: offering rapid heat dissipation, ensuring optimal performance and longevity even during extended use.
Hot swapping: wireless connection

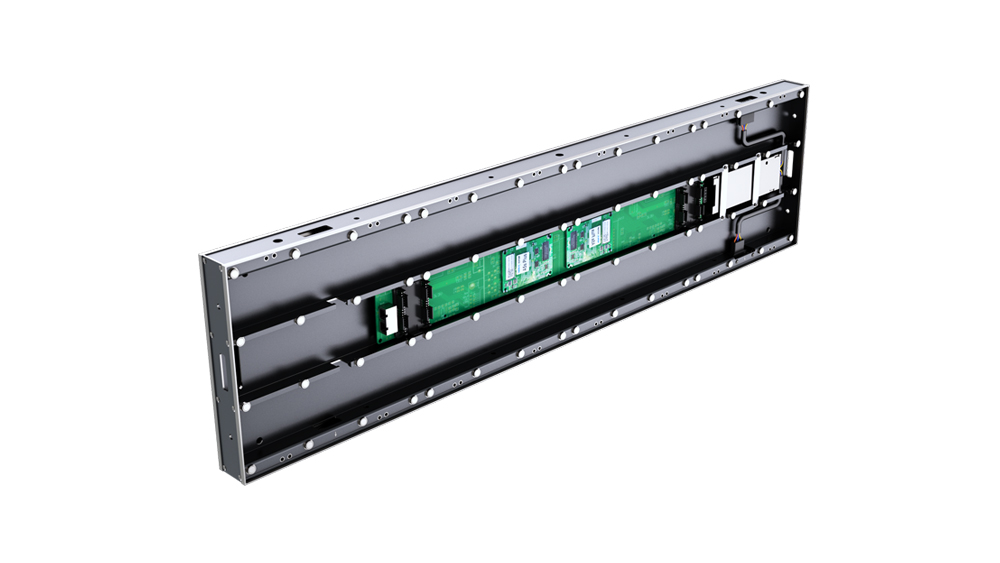

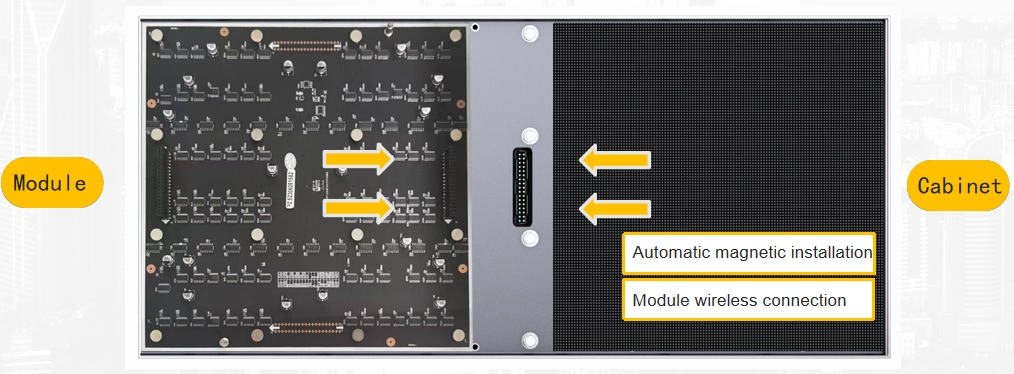

The hard connection design between the LED module and the box completely eliminates the constraints of wires
5V line design with lower failure rate
All aluminum die-casing cabinet provide fast heat dissipation
🔹 Double-Sided Brilliance
Maximize visibility with 4K/8K UHD resolution on both sides,
delivering 1000+ nits brightness for indoor environments.
🔹 360° Content Syncing Technology
Control dual-screen visuals seamlessly via cloud-based CMS
(Content Management System), ideal for live events and dynamic ads.
🔹 Space-Efficient Design
30% thinner than traditional LED boards, IP31 rating for durability.
🔹 Energy-Saving Pro Mode
Reduce power consumption by 40% with adaptive brightness sensors
(Auto-dimming in low-traffic hours).

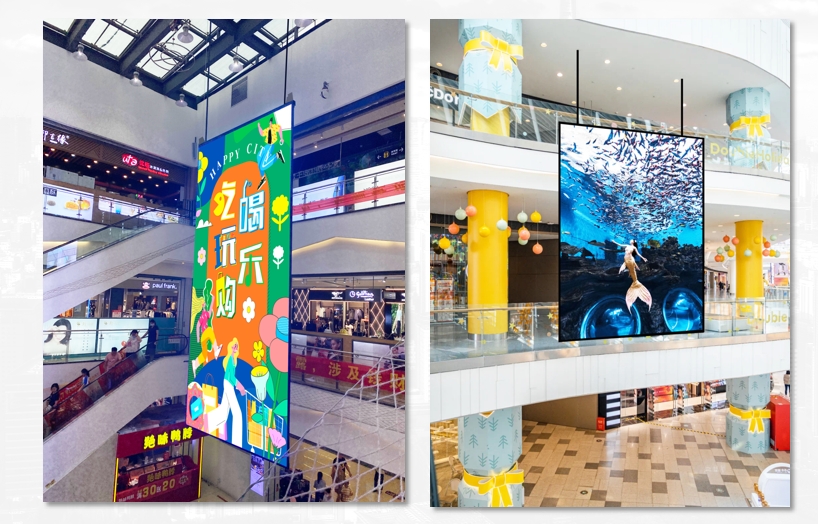

Usage : widely used for stadium & sports arenas, retail storefronts a shopping malls; transportation hubs (like airports or subways) ; event stages and exhibitions booths.
This dual-sided led display can do 360° advertising screen, normally used as indoor LED billboard. with energy-efficient led technology, this dual sided led screen can save 40% power consumption compare to other LED displays.
This dusal-sided LED video walls support cloud-based content management system, we use Novastar/ colorlight/ grayscale video processor for management, also accept customization.

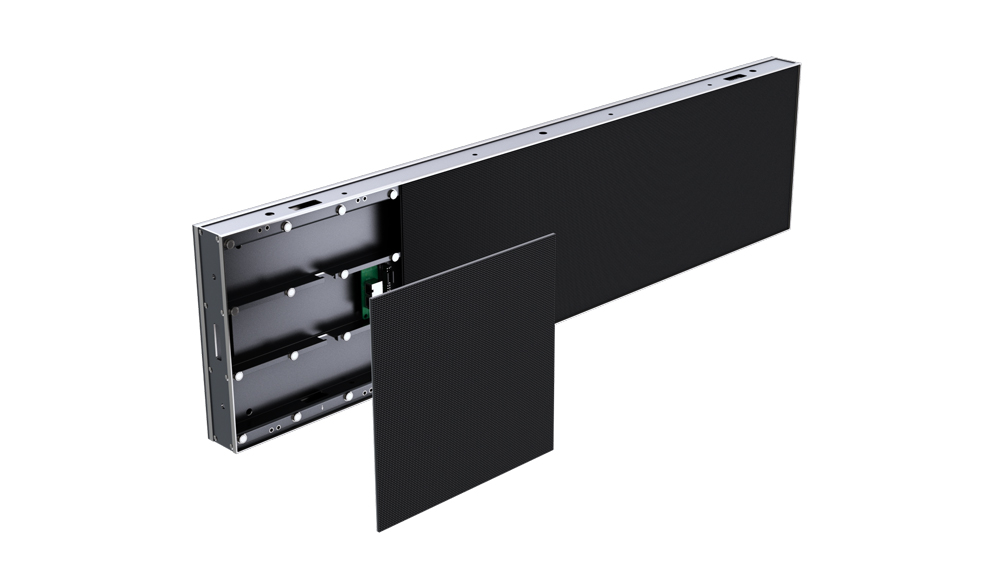

The LED modules and cabinet are adsorbed by multiple magnetic colmns, which is widely used in rental led display and fine pitch hub connection LED displays.
with this design, easy to do front maintenance, greatly save the after-sale service cost.
Specification
| Pixel Pitch | P 1.25 | P 1.56 | P 1.95 | P 2.5 | P 2.6 | P 2.9 | P 3.9 |
| LED Type | SMD1010 (GOB) | SMD1212(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Physial Density (Dot/Sqm) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module Dimension (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module Resolution | 200 x 200 | 160 x 160 | 128 x 128 | 100 x 100 | 96 x 96 | 84 x 84 | 64 x 64 |
| Cabinet Size (mm) | 1000 x 250 x 54 750 x 250 x 54 500 x 250 x 54 | ||||||
| Cabinet Resolution | 800 x 200 600 x 200 400 x 200 | 640 x 160 480 x 160 320 x 160 | 512 x 128 384 x 128 256 x 128 | 400 x 400 300 x 100 200 x 100 | 384 x 96 288 x 96 192 x 96 | 336 x 84 252 x 84 168 x 84 | 256 x 64 192 x 64 128 x 64 |
| Maintenance | Front maintenance | ||||||
| Single point brightness correction | Yes | ||||||
| Brightness (nits) | 600 | 800 | 1000 | ||||
| Color Temperature (K) | 3200 - 9300 Optional | ||||||
| Viewing Angle （V/H） | 160 ° / 160 ° | ||||||
| Brightness/Colr Uniformity | ≥ 97% | ||||||
| Contrast | 10000 :1 | ||||||
| Frame Frequency | 50/60 | ||||||
| Drive Mode | 1/50 scan | 1/40 scan | 1/32 scan | 1/25 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Gray Level | 14/16 Optional | ||||||
| Refresh Rate | 3840 Hz | ||||||
| Max. Power Consumption (WSqm) | 650 | ||||||
| Avg. Power Consumption (W/Sqm) | 100 - 200 | ||||||
| Protection Level | IP31 | ||||||
| Power Input | AC 90 - 264V / 47 - 63Hz | ||||||
| Working Temperature/Humidity (℃/RH) | -20 ~ 60 ℃ / 10% ~85% | ||||||
| Storage Temperature/Humidity (℃/RH) | -20 ~ 60 ℃ / 10% ~85% | ||||||
| Certificates | CCC/CE/RoHs/FCC/CB/TUV/IEC | ||||||
If you are interested in any of our products, please feel free to contact us .Our staff will tell you process.
Within 2-3 working days based on our negotiation.
We only supply 100% original new parts ,unused parts.
Yes.Usually, the stock is stable, because of the fluctuant selling, the stock lists are always changing and the stock list cannot be promptly updated. So, please consult the stock situation when you inquiring.
We have QC department and built full quality control system to inspect the items we supplied. If parts are coming from OEM-excess or non-authorized distributor, don’t worry, we are working with testing house CECC and Whitehorse lab for our quality control. All shipment values more than US $500 from BCT will be sent to Whitehorse lab in Hong Kong for visual inspection and drop-shipment. Technical testing can be operated subject to customer requests.
We are LED Display manufacturer from Shenzhen China and ship worwide- if you need more information, like a pricing quota, or you want to discuss ideas for using our LED screen products, feel free to contact us, email us via ellen@zimway.cn or call us on +86 185 6623 9091
