Outdoor LED Display - 5000 Nits Brightness IP65

Outdoor LED Display Solutions: Built to Outperform in Any Weather

- 5000 Nits High Brightness (Visible Even in Direct Sunlight)
- IP65 Waterproof & Dustproof Certification
- 20% Energy Saving vs. Traditional LED Boards
- Pixel Pitch: P2.5/P3.9/P4.8 (Customizable)
- Operating Temperature: -20°C to 60°C
- Refresh Rate: 3840Hz for Smooth Video Playback
- Certifications: CE, RoHS, UL, ETL
- 3-Year Durability Guarantee

STANDARD Outdoor LED Display - 5000 Nits Brightness IP65 SIZE*

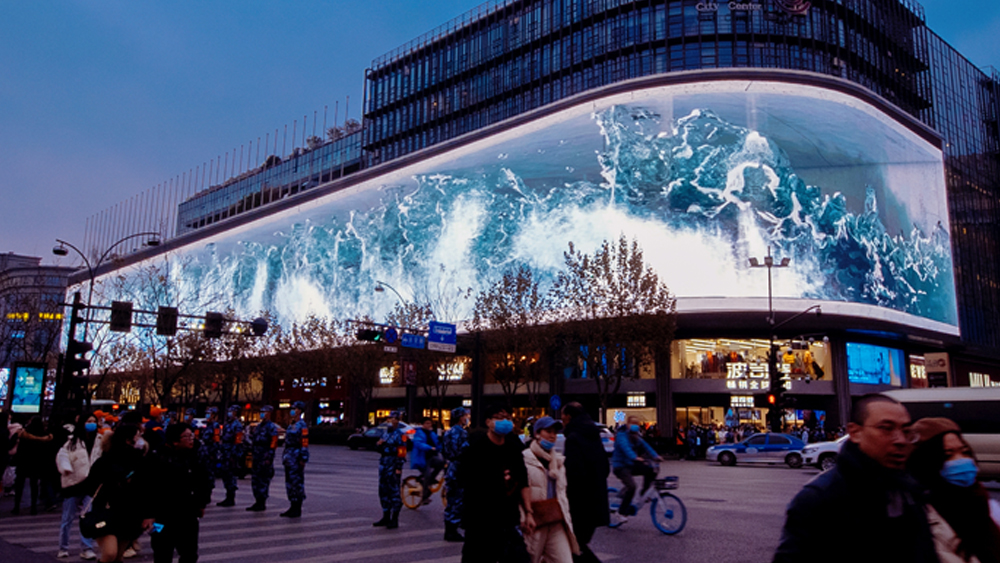

3D LED display.jpg

Outdoor LED Module Dimension: 250 x 500 mm

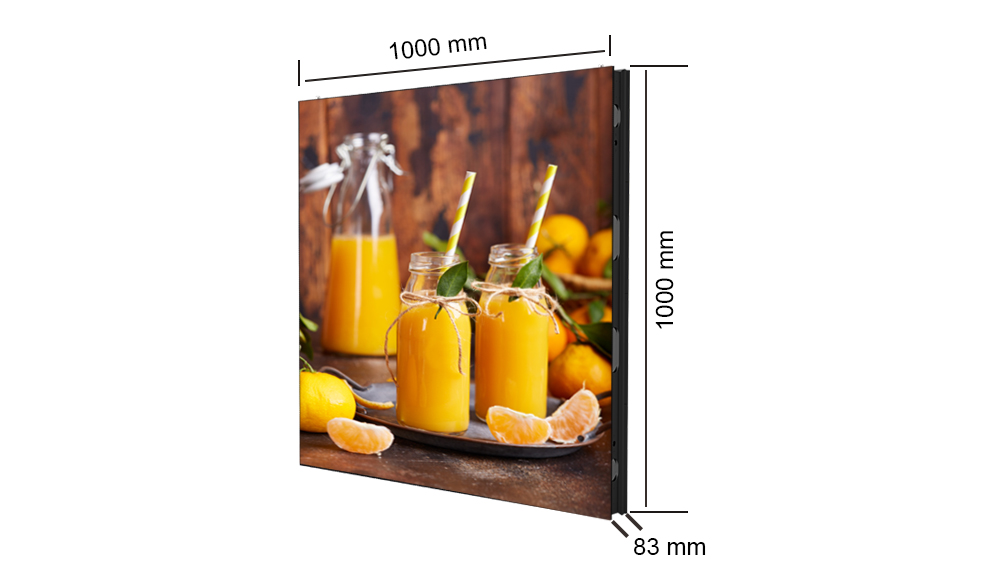

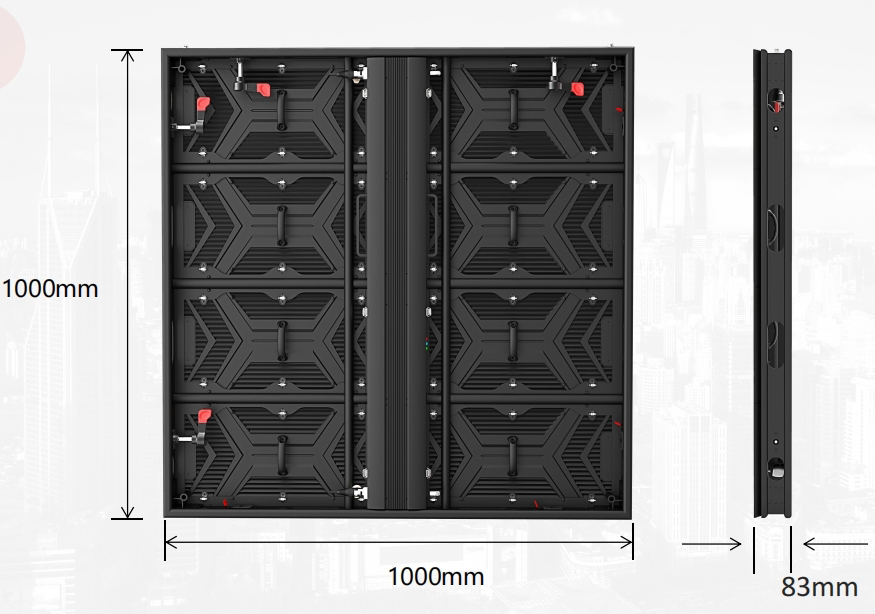

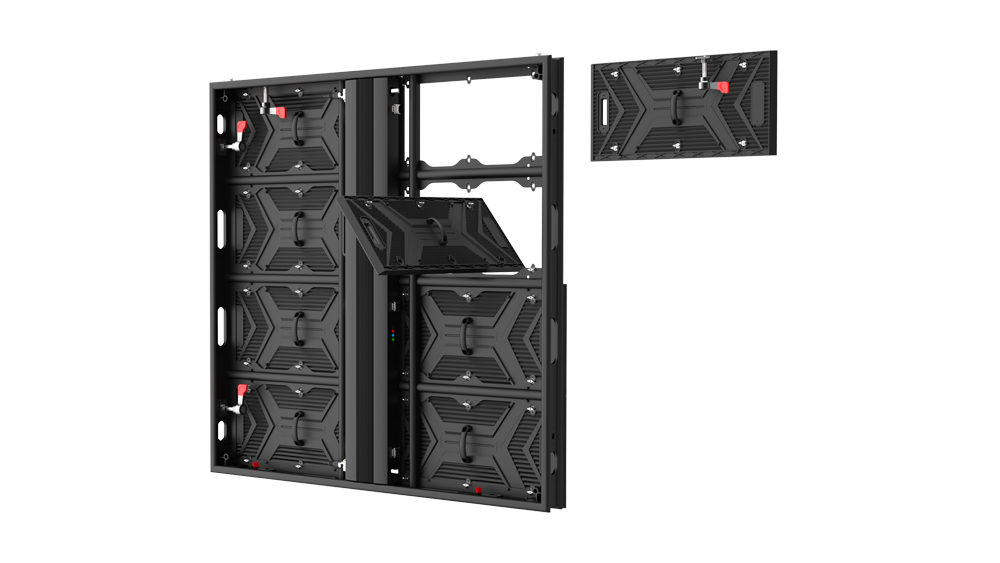

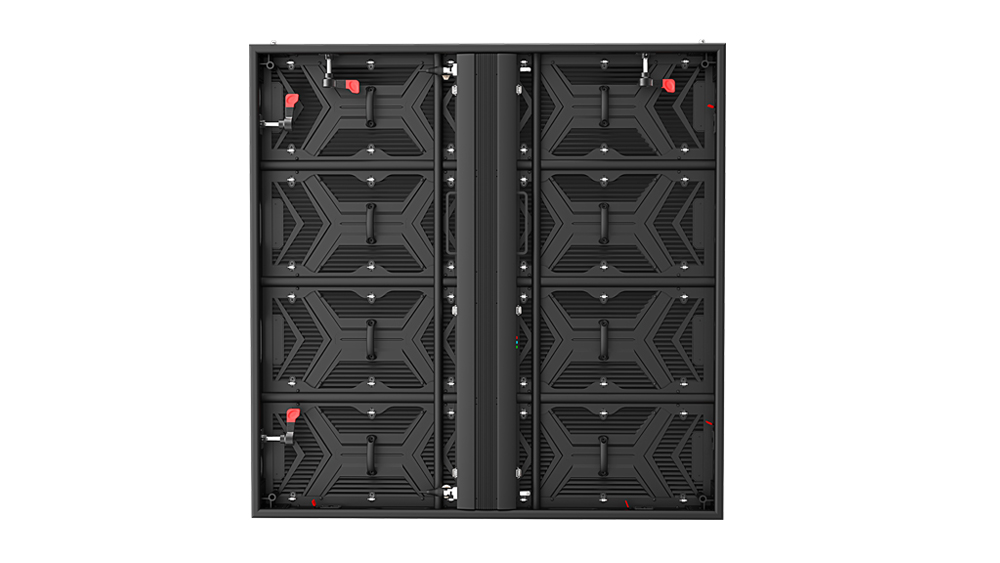

Outdoor LED Cabinet Dimension: 1000 x 1000 x 83 mm

Net Weight of the Outdoor LED Display Cabinet: 22.5 kg , 35% lighter than normal LED display

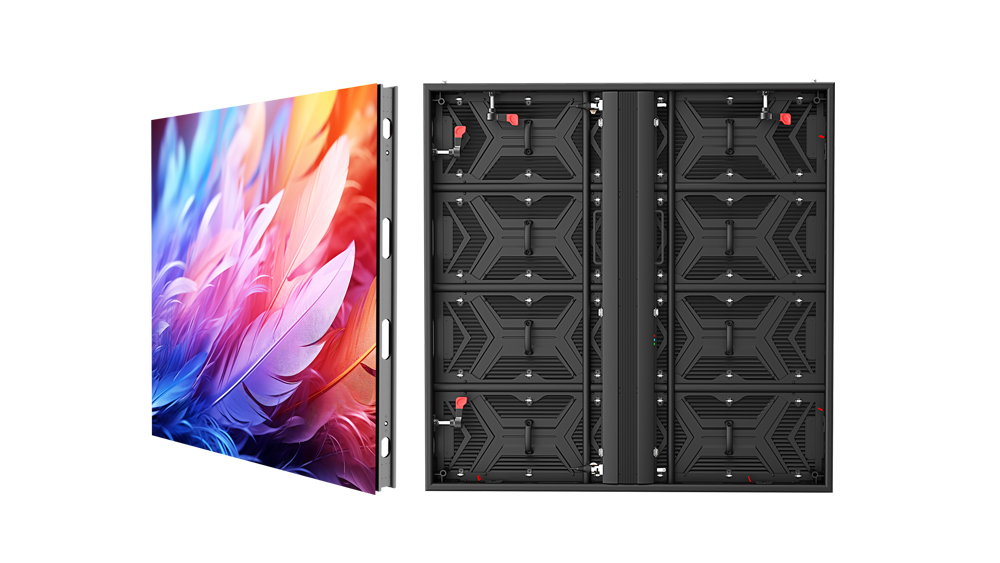

Features of Outdoor LED Screen -Ti Series

Sunlight readable LED screen: up to 6500 nits hight brightness, which makes the content would be read clearly under sunlight;

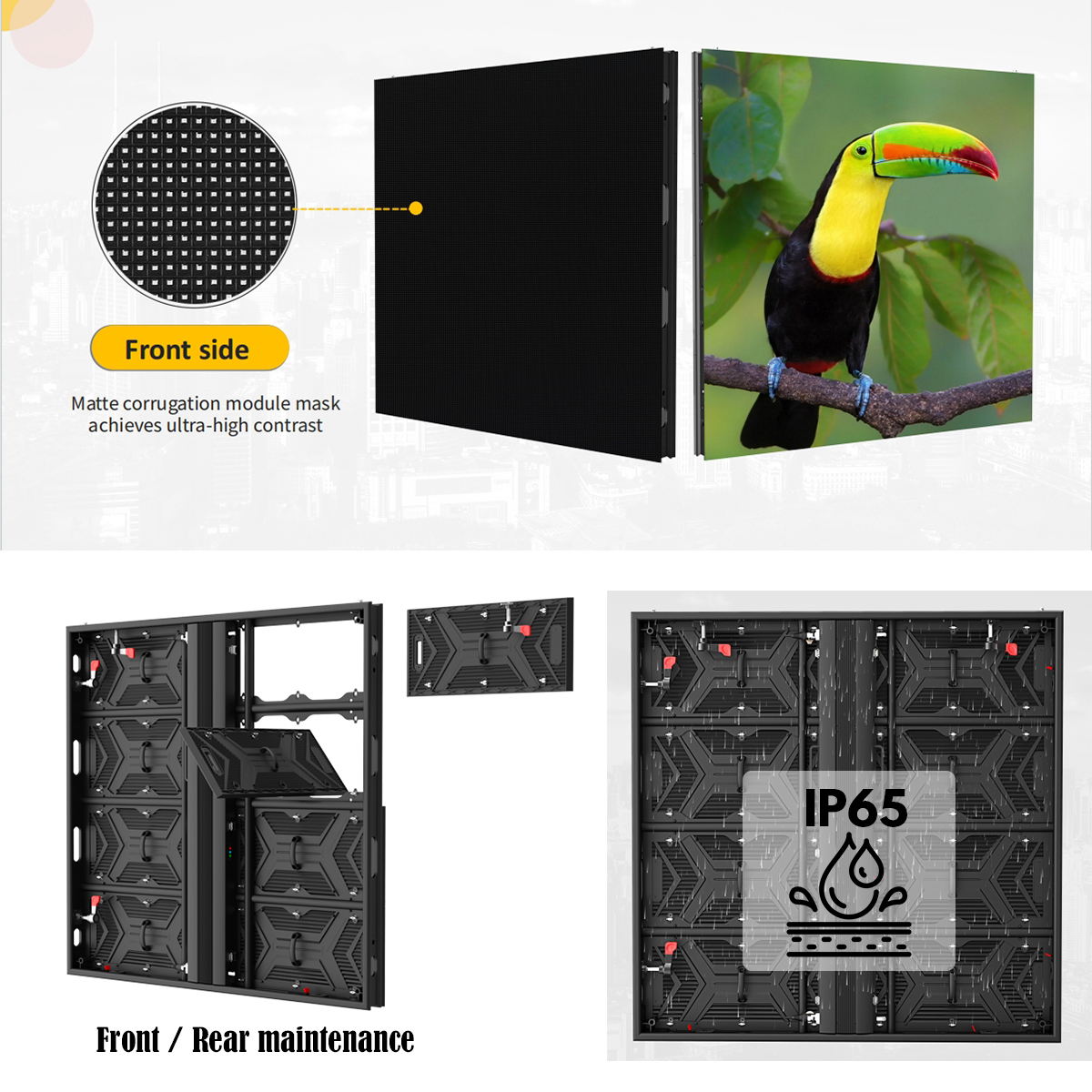

High-contrast : frontside matte corrugation module mask achieves ultra-high contrast
Aluminum profile cabinet makes the cabinet is 35% lighter than tranditional outdoor LED display, which also saves transportation cost and installation cost.
IP65 rated waterproof

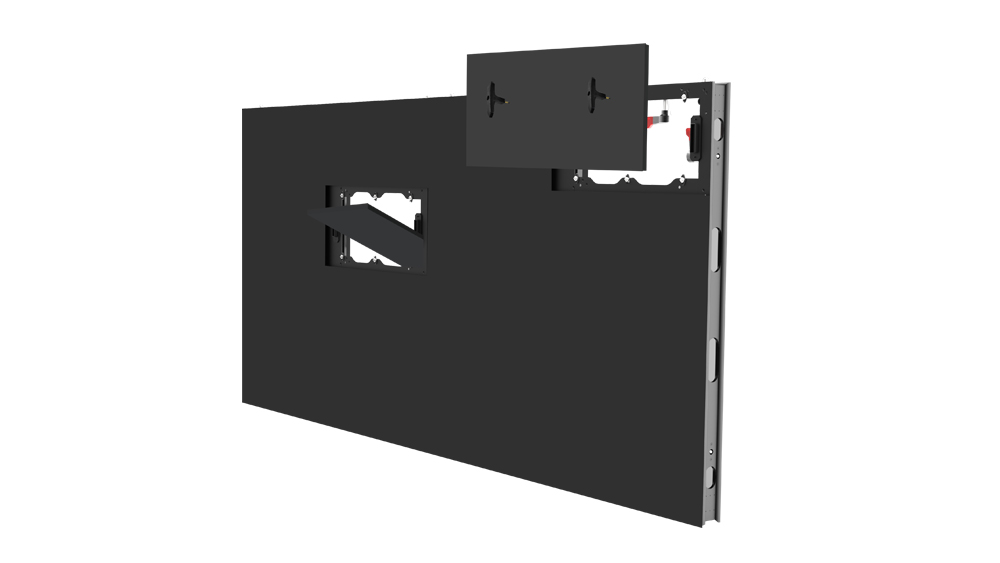

Support front / rear side maintenance

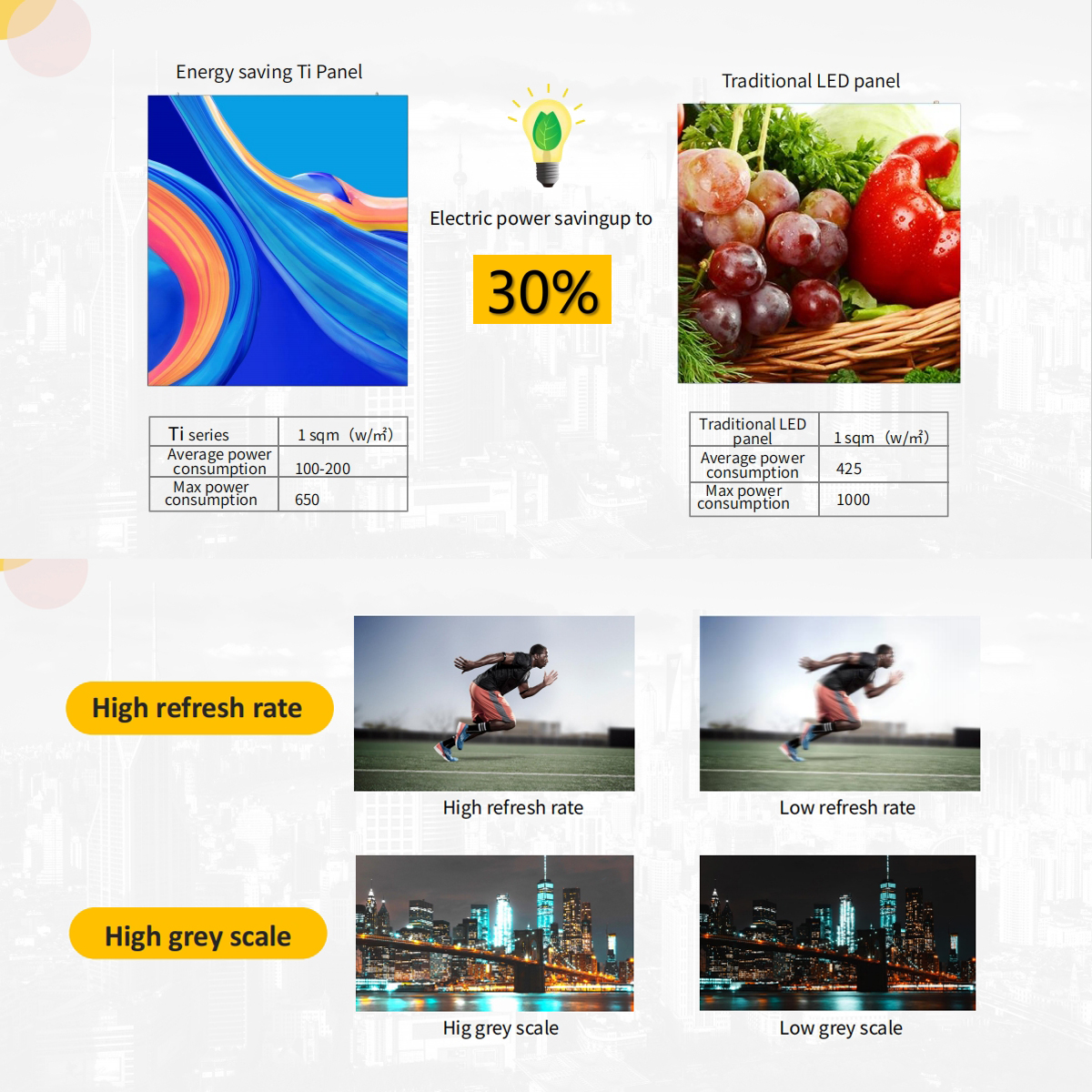

30% power saving compare to trandtional LED panel : our Ti-series 3D eye naked outdoor led display average power consumption is only 100-200w, which is 30% lower than tranditional LED display's 425w.
The max power consumption is only 650w compare to tranditional's 1000w.
3840Hz high refresh rate and 14-16 high grey scale : provide a better image / video display result.
160° super wide viewing angle: perfect presentation of images frm any angle.

Installation friendly and labour saving design: which makes the installation easier and helps saving the labour cost.

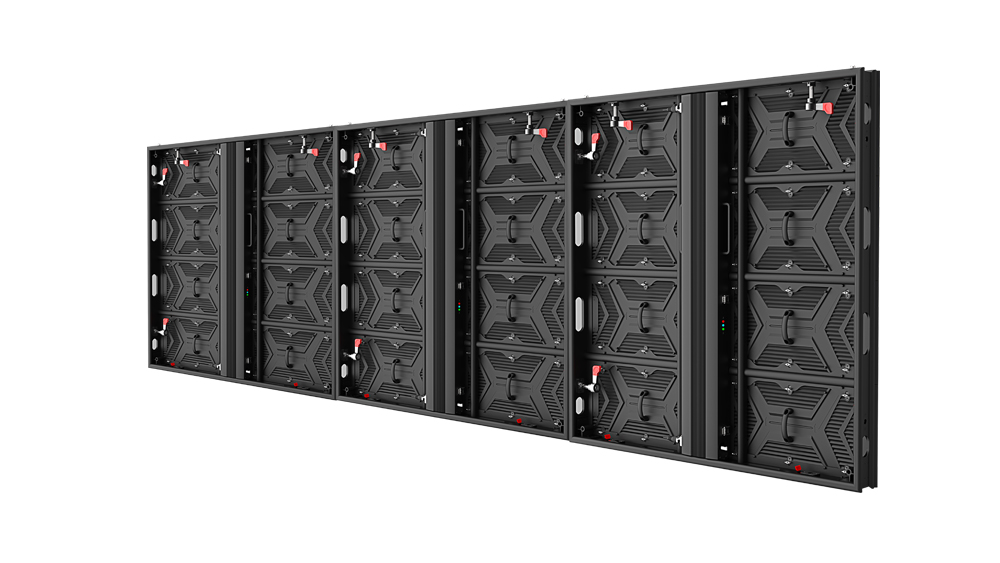

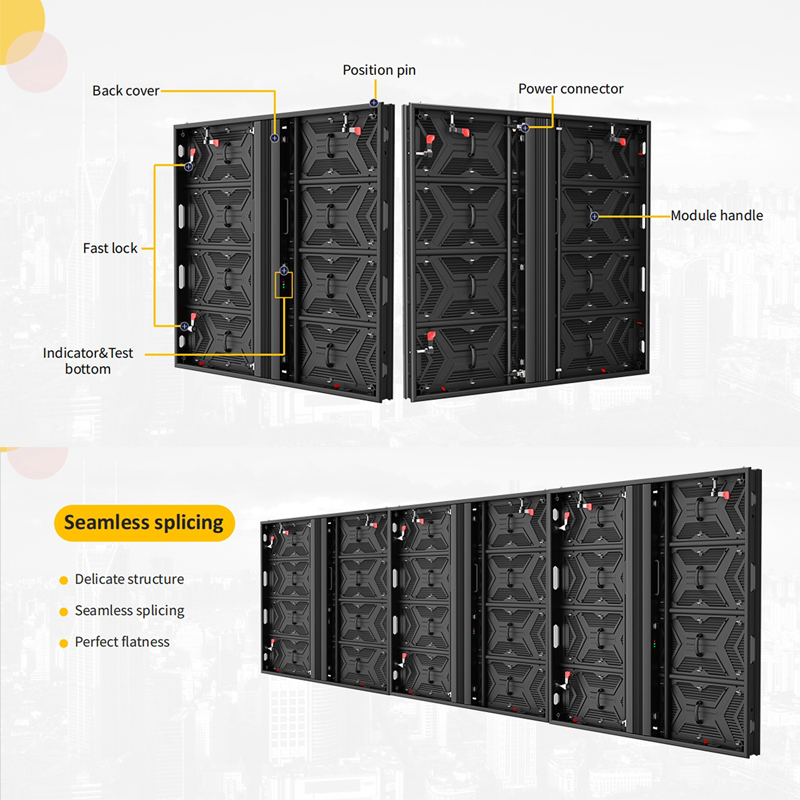

Delicate structure design support seamless splicing and perfect flatness
Stainess fast lock catch design: easy to install and find the fatness.

Usage:

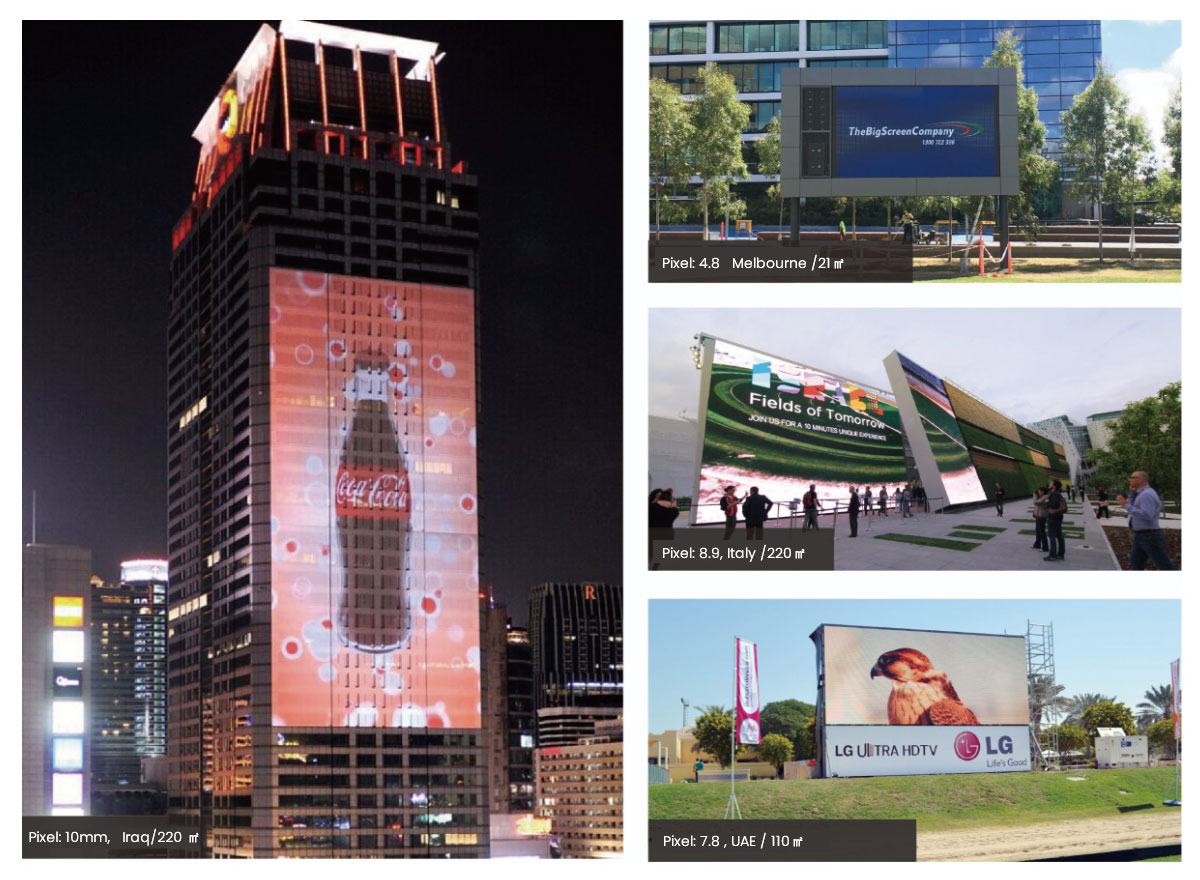

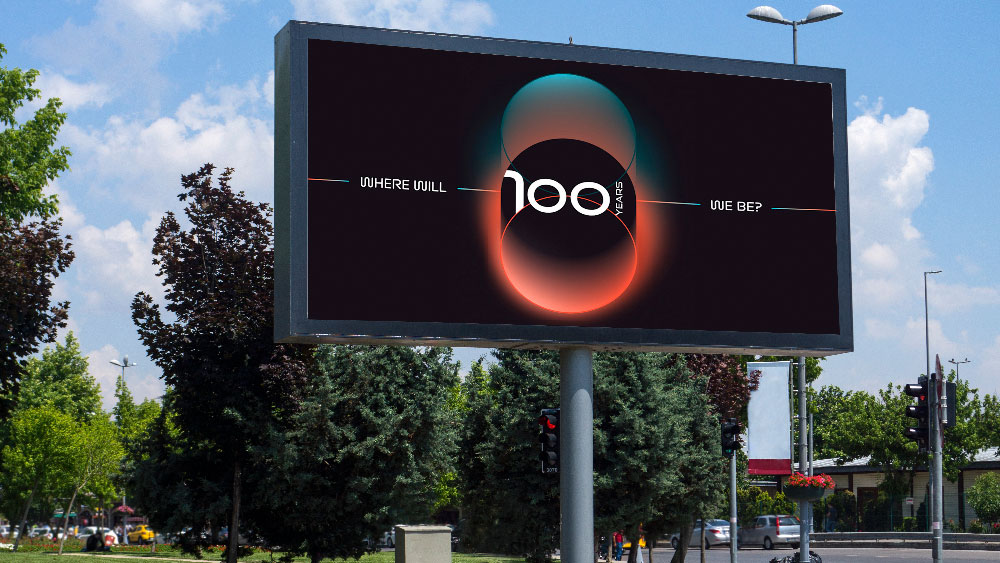

Outdoor LED display Ti series is widely used for stadiums, shopping malls, billboards and traffic light, airport LED information board.

It is also a god commercial LED billboard solutions for advertising screen.

Specification

Pixel Pitch	P2.976	P3.91	P4.81	P6.25	P7.81	P10.42
SMD Type	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density (dots/㎡)	112896	65536	43264	25600	16384	9216
Module Resolution	168 x 84	128 x 64	104 x 52	80 x 40	64 x 32	48 x 24
Module Size (mm)	500 x 250
Cabinet Dimension (WxH/mm)	1000 x 1000 x 83mm (customizable for 1500 x 1000 x 83mm / 750 x 1000 x 83mm / 500 x 1000 x 83mm )
Cabinet Resolution	336 x 336	256 x 256	208 x 208	160 x 160	128 x 128	96 x 96
Cabinet Weight (kg)	22.5
Cabinet Material	Aluminum
Maintenance Mode	Front / Rear
Color Temerature (K)	≥ 4500	6000	6000	6000	6000	6000
Viewing Angle (H/V)	140° /160°
Best Viewing Distance	3-100 m	4-100 m	4-100 m	6-150 m	8-150 m	10 -200m
Contrast Ratio	10000 : 1
Frame-Change Frequency (Hz)	50 / 60
Driving Mode	1/ 21 Scan	1/16 Scan	1 / 13 Scan	1/ 8 Scan	1 / 4 Scan	1 / 2 Scan
Grey Level	16 bit
Refresh Rate (Hz)	3840 Hz
Max Power Consumption (W/㎡）	800	650
Avg Power Consumption (W/㎡）	200 - 300	100 - 200
Protection Level	IP65
Power Suppy Requirements	AC 90 - 264V , 47 - 63Hz
Working Temp / Humidity (℃/ RH)	-20 ~ 60 ℃ / 10%~85%
Storage Temp / Humidty (℃/RH)	-20 ~ 60 ℃ / 10%~85%
Certificate	CCC / CE / RoHs / FCC / CB / TUV / IEC

How to Place my order?

If you are interested in any of our products, please feel free to contact us .Our staff will tell you process.
When will my order be shipped ?

Within 2-3 working days based on our negotiation.
What’s the condition of the items?

We only supply 100% original new parts ,unused parts.
Is your stock stable?

Yes.Usually, the stock is stable, because of the fluctuant selling, the stock lists are always changing and the stock list cannot be promptly updated. So, please consult the stock situation when you inquiring.
How do you control your products quality?

We have QC department and built full quality control system to inspect the items we supplied. If parts are coming from OEM-excess or non-authorized distributor, don’t worry, we are working with testing house CECC and Whitehorse lab for our quality control. All shipment values more than US $500 from BCT will be sent to Whitehorse lab in Hong Kong for visual inspection and drop-shipment. Technical testing can be operated subject to customer requests.

ANY QUESTIONS?

We are LED Display manufacturer from Shenzhen China and ship worwide- if you need more information, like a pricing quota, or you want to discuss ideas for using our LED screen products, feel free to contact us, email us via ellen@zimway.cn or call us on +86 185 6623 9091
