Our corner curved LED display technology seamlessly wraps around architectural corners, creating immersive 90° viewing experiences. Ideal for retail stores, museums, and lobbies, these radius-adjustable LED panels feature P3.125 pitch resolution and 5000 nits brightness.
This innovative display solution combines high-resolution imaging, seamless curvature, and flexible design capabilities, making it perfect for a wide range of applications.
Whether used for commercial advertising, public information displays, or architectural enhancements, our Corner Curved LED Display offers unparalleled visual impact and versatility.

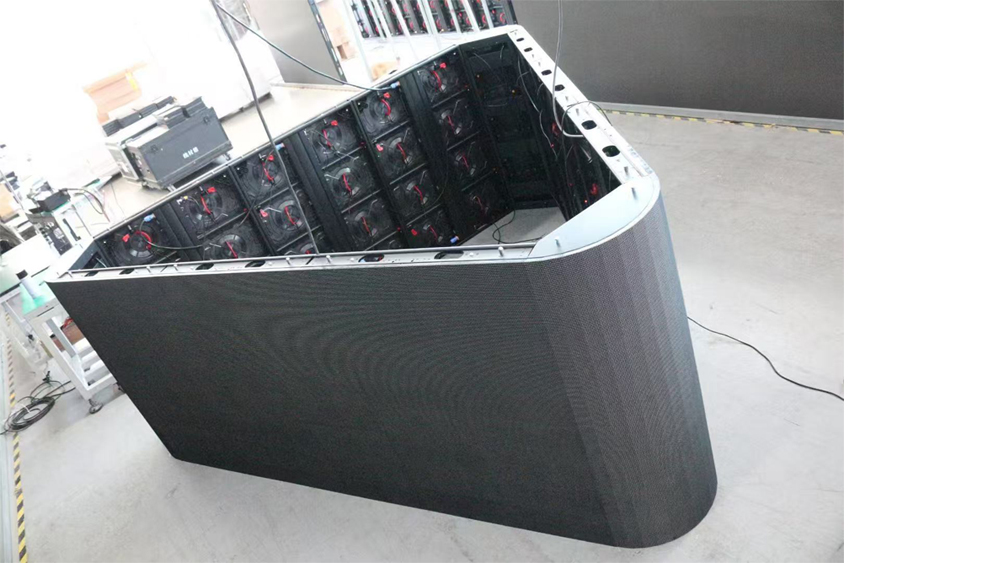

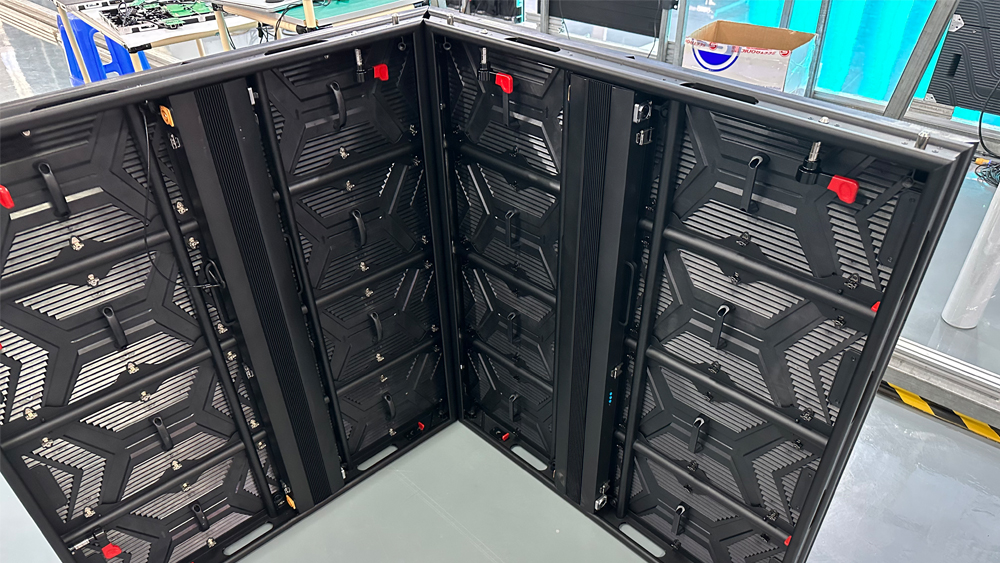

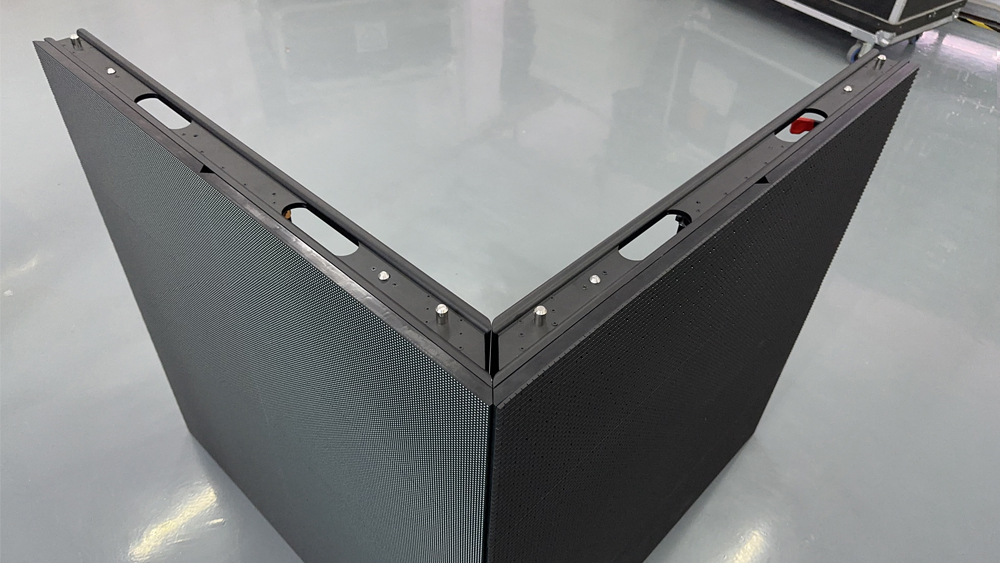

Our corner curved LED display has right angle corner curved and arc angle corner curved choice, the right-angle corner curved LED display size is 1000 x 1000 x 83 mm , the same cabinet size.

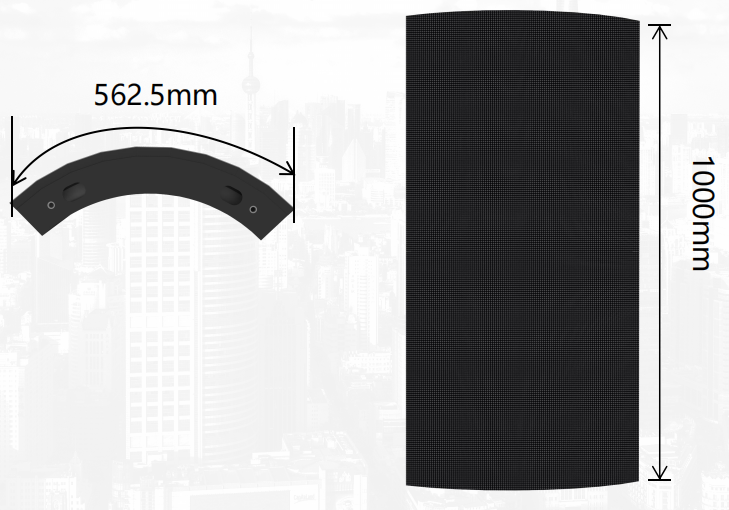

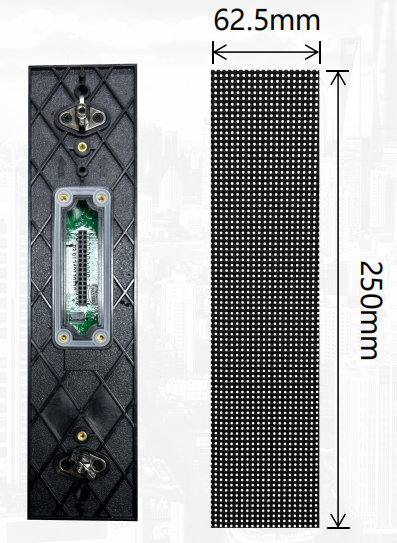

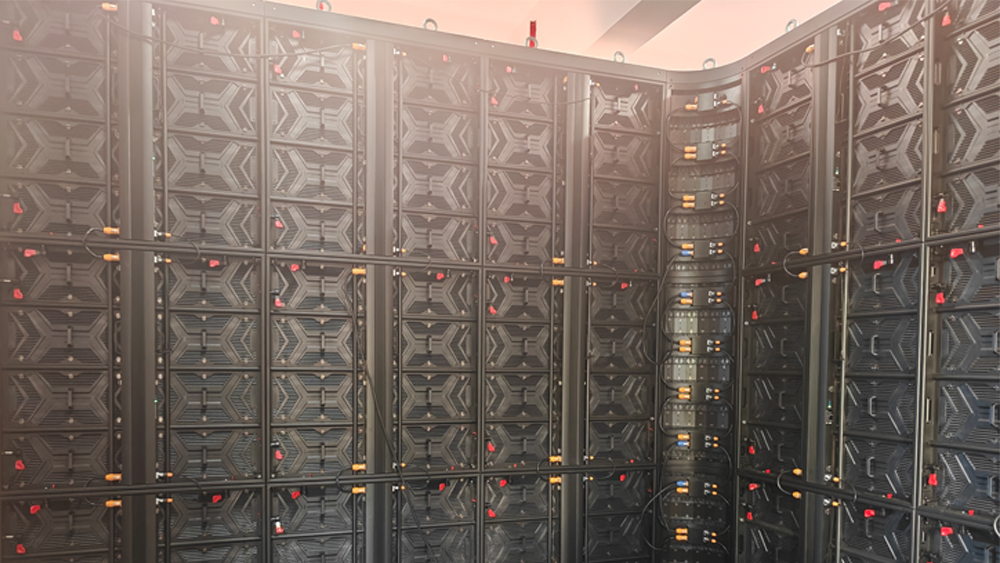

the arc angle corner size is 1000 x 562.5 mm, with the LED module size 250 x 62.5 mm
Whether you need a seamless corner display or a large-scale outdoor screen, our Corner Curved LED Display offers the flexibility, durability, and high performance you need to make a lasting impression.
Our curved corner led display solutions are designed to elevate your visual presentations with cutting-edge technology and customizable options.
Key Features
Seamless Visual Continuity: High-precision splicing technology ensures no visible gaps or dead zones, providing a smooth, unified visual experience.
High Definition and 3D Effects: Supports 4K/8K video playback with vivid colors and optional naked-eye 3D effects, enhancing visual impact.
Flexible Design: Customizable shapes and sizes to fit any installation environment, including right angles, arcs, and 3D configurations
Energy Efficiency: Advanced LED technology reduces power consumption while maintaining top-tier performance.
Durability: Built with robust materials and IP65 waterproof rating, ensuring long-term reliability in harsh conditions.
Easy Installation and Maintenance: Modular design allows for quick setup and hassle-free maintenance, with front and rear access options.
Discover the next generation of visual excellence with our Corner Curved LED Display. This innovative display solution combines high-resolution imaging, seamless curvature, and flexible design capabilities, making it perfect for a wide range of applications. Whether used for commercial advertising, public information displays, or architectural enhancements, our Corner Curved LED Display offers unparalleled visual impact and versatility.

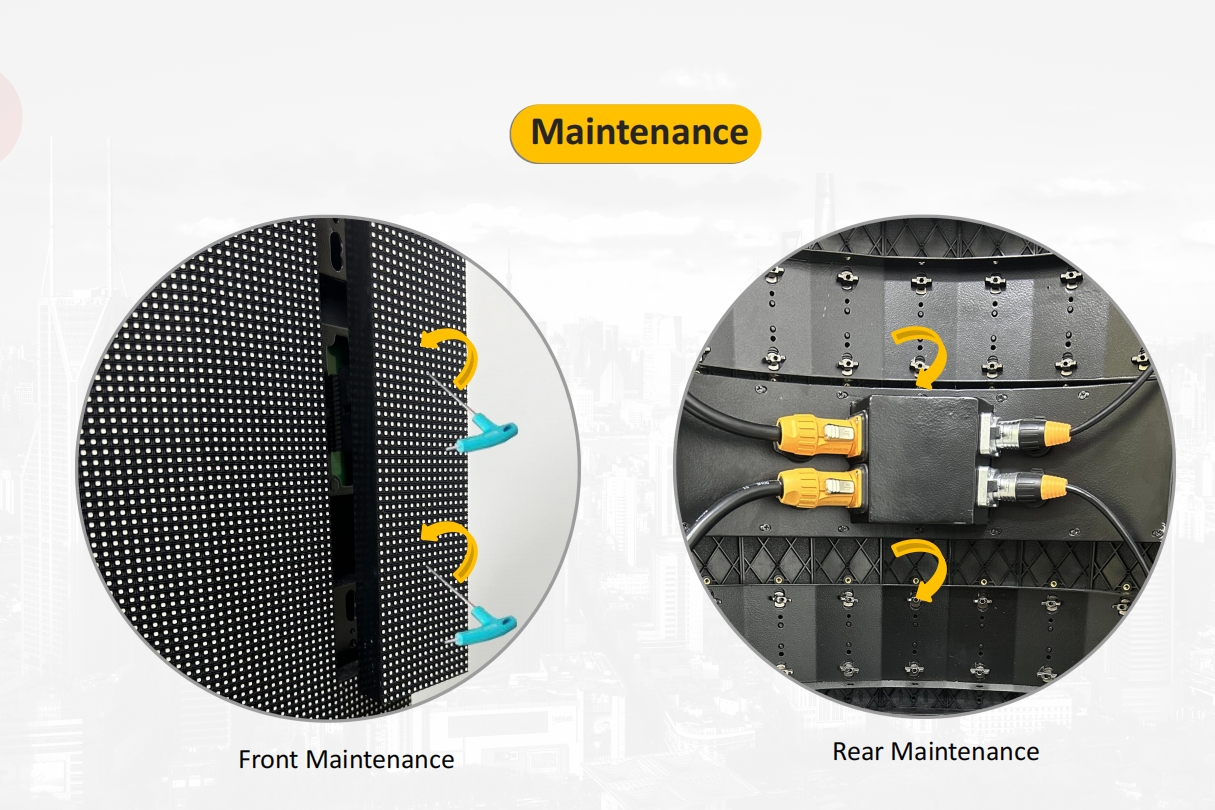

Easy to do maintenance : our corner curved LED display support front maintenance and rear maintenance.
IP65 rated water-proof level : both front and rear can be IP65 waterproof level.
High refresh rate : support 3840Hz refresh rate.
High grey scale : 16 bit grey.
Wide viewing angle : perfect presentation of images from any angle.
Simway corner LED displays applications :

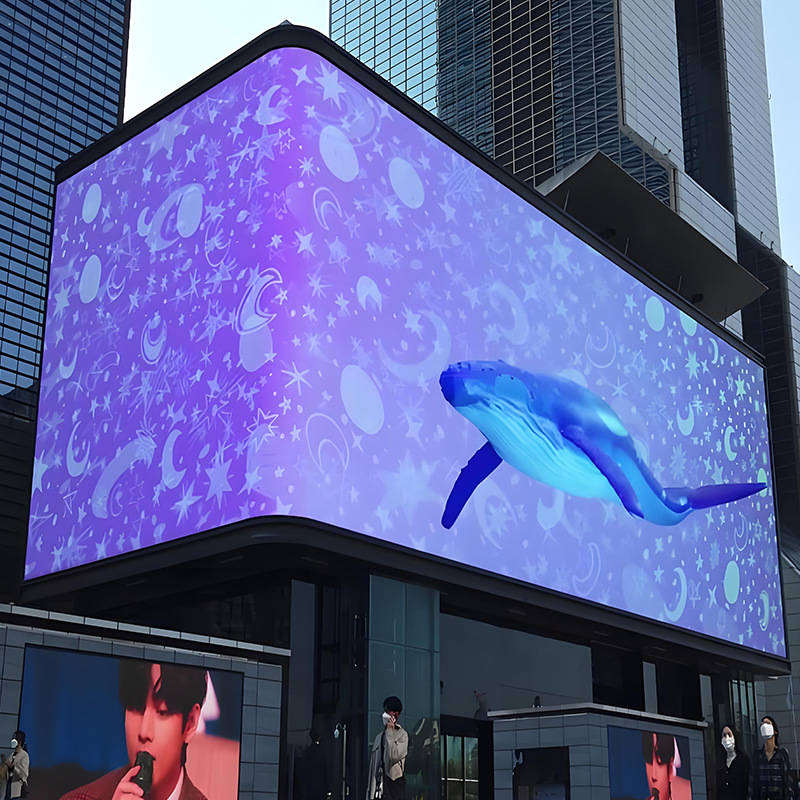

- Commercial Advertising: it is an ideal solution for high-traffic areas like shopping malls, airports, and outdoor billboards.
- Enertainment and Stage Design: with the corner curved LED display, you can create a more wide viewing angle screen (170° V/H viewing angle) and more smooth seamless wraps, enhances concerts, theaters and live broadcasts with immersive visual effects.

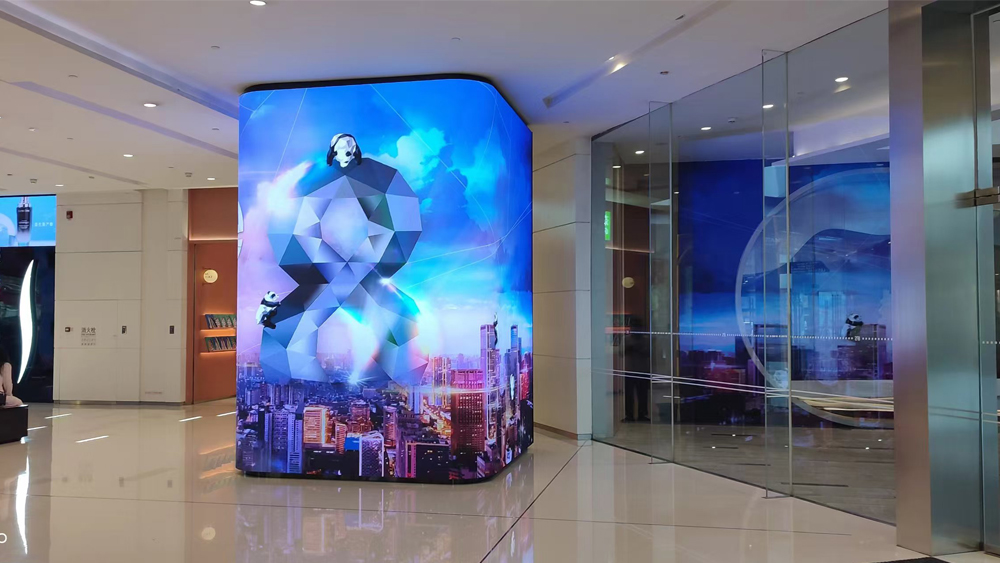

- Architectural Media Facades: can add modern aesthetics to building exteriors, atriums, and public spaces.
- Public Information Displays: for a public informaion display provides real-time news, weather and traffic updates in city squares and transportation hubs, with a curved corner, can greatly improve the audiences viewing field.
Specification
| Pixel Pitch | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density (Dot/㎡) | 65535 | 43264 | 25600 | 16384 | 9216 |
| Moule Resolution | 16 x 64 | 104 x 52 | 80 x 40 | 8 x 32 | 6 x 24 |
| Module Size (W x H) | 62.5 x 250 | ||||
| Cabinet Size (mm) | 562.5 x 1000 | ||||
| Cabinet Resolution | 144 x 256 | 208 x 208 | 160 x 160 | 72 x 128 | 54 x 96 |
| Module Quantity (WxH） | 9 x 4 | ||||
| Cabinet Weight (Kg) | 24.6 | ||||
| Maintenance Mode | Front / Rear Maintenance | ||||
| Material | Iron | ||||
| Brightness | 5000 | 6000 | 5000 | ||
| Color Temerature (K) | 1000-18500 Adjustable | ||||
| Viewing Angle (V/H) | 140° / 160° | ||||
| Contrast Ratio | 10000 : 1 | ||||
| Frame Frequency | 50 / 60 | ||||
| Drive Mode | 16 scan | 13 scan | 8 scan | 4 scan | 2 scan |
| Grey Scale | 65536 | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Max Power Con. (W/㎡) | 650 | ||||
| Ave Power Con. (W/ ㎡) | 200-300 | 100-200 | 200-300 | ||
| Protection Level | IP65 | ||||
| Power Input | AC 90 -264V 47-63Hz | ||||
| Operation T/H (℃/RH) | -20 ~ 60 ℃ / 10%~85% | ||||
| Storate T/H (℃/RH) | -20 ~ 60 ℃ / 10%~85% | ||||
| Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||||
