COB LED Display - M Pro

High Density COB LED Screen - 4K Seamless Video Walls | Simway

P0.625 /P0.78 / P0.9375 /P1.25 /P1.5625 /P1.875

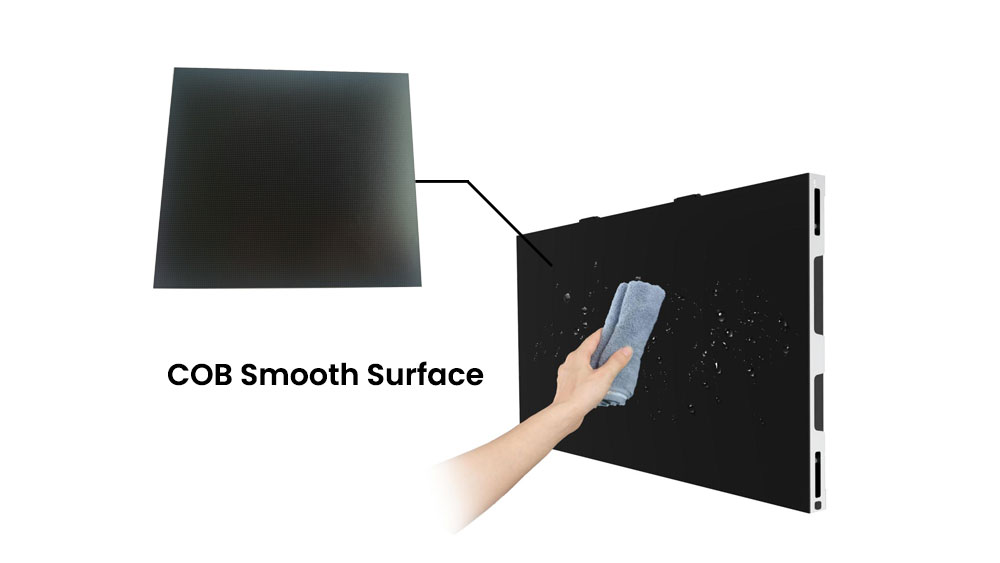

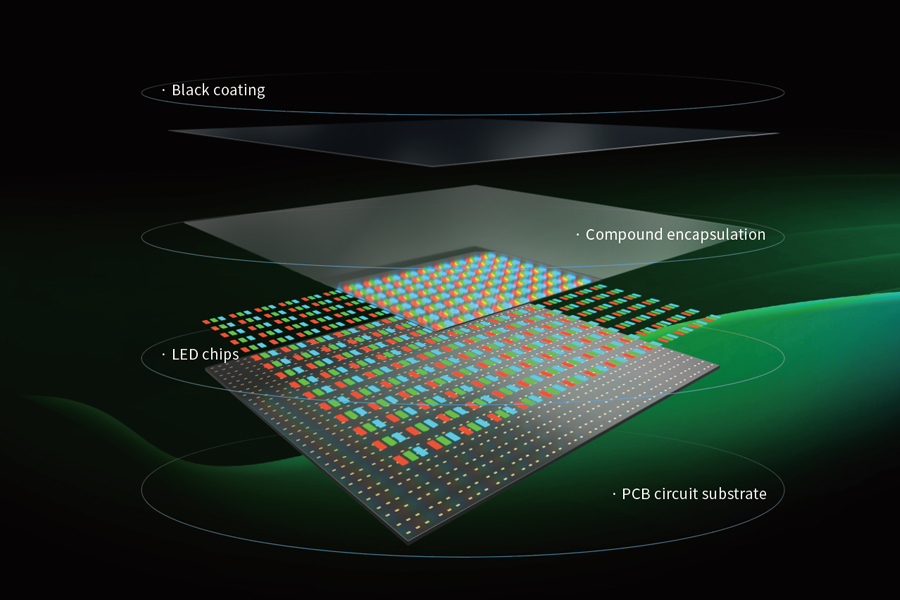

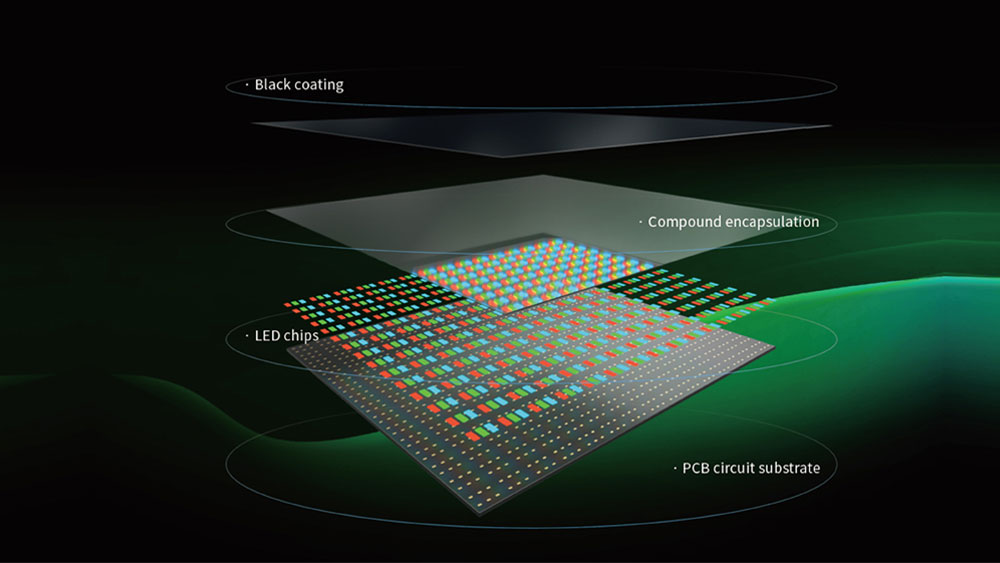

►COB integrated packaging, higher reliability, easy to clean;

►Chip-level packaging, improves heat dissipation capacity from the source;

►Ultra-thin, ultra-light, the overall thickness is only 27.5mm;

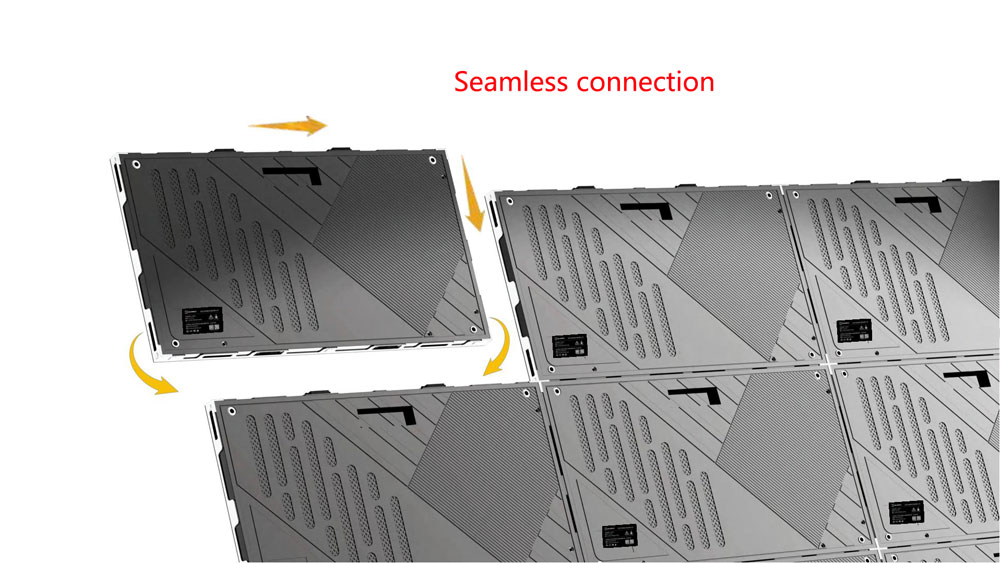

►Seamless connection, ultra-high definition, more natural color transition;

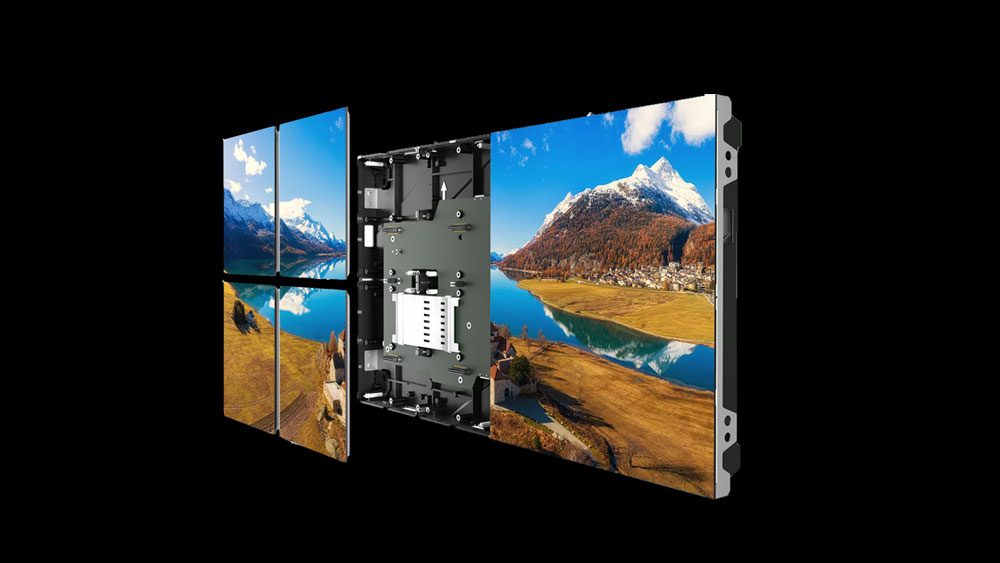

►Fully front maintenance, supports front and rear installation, more flexible and convenient.

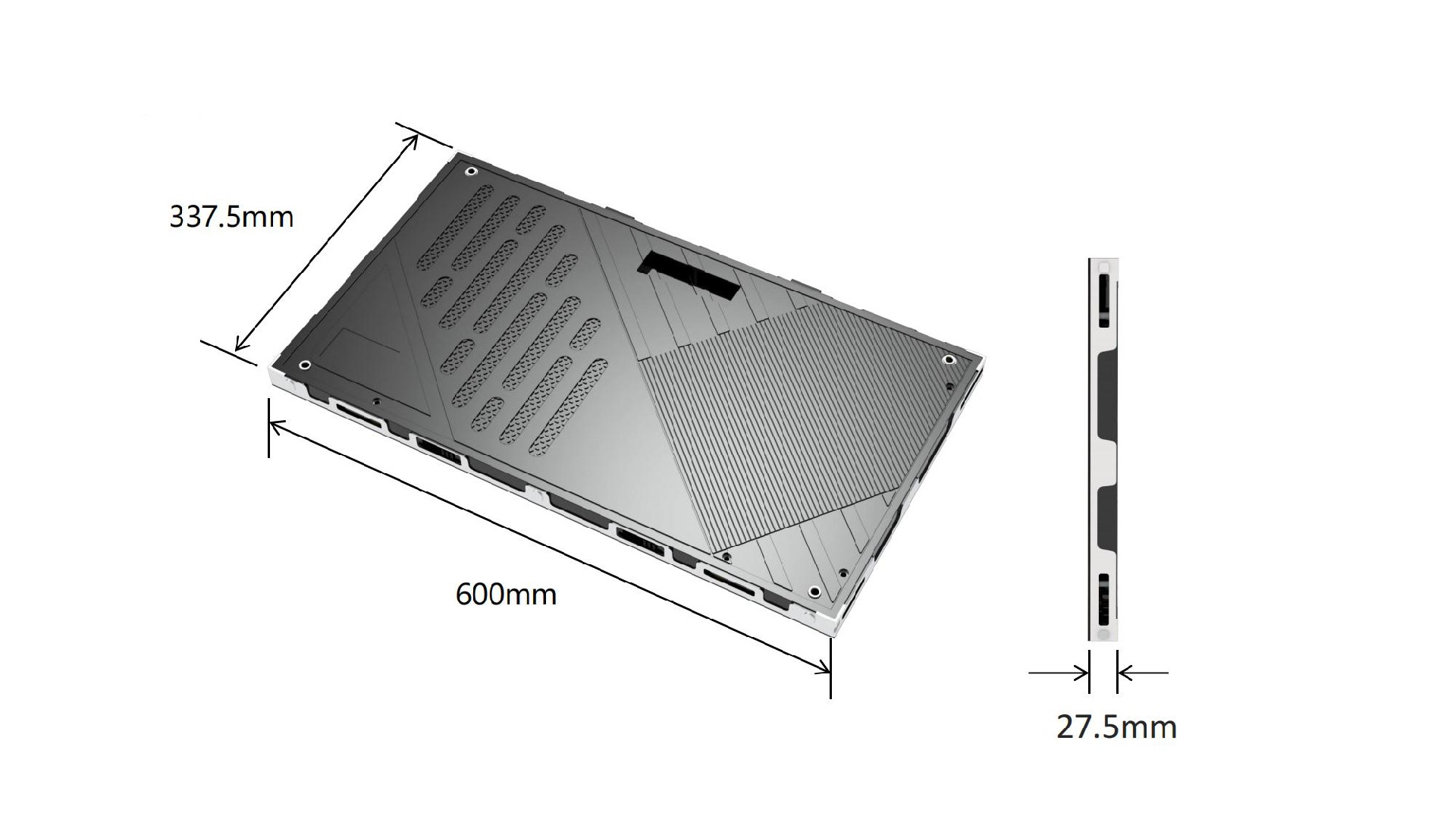

STANDARD COB LED Display - M Pro SIZE*

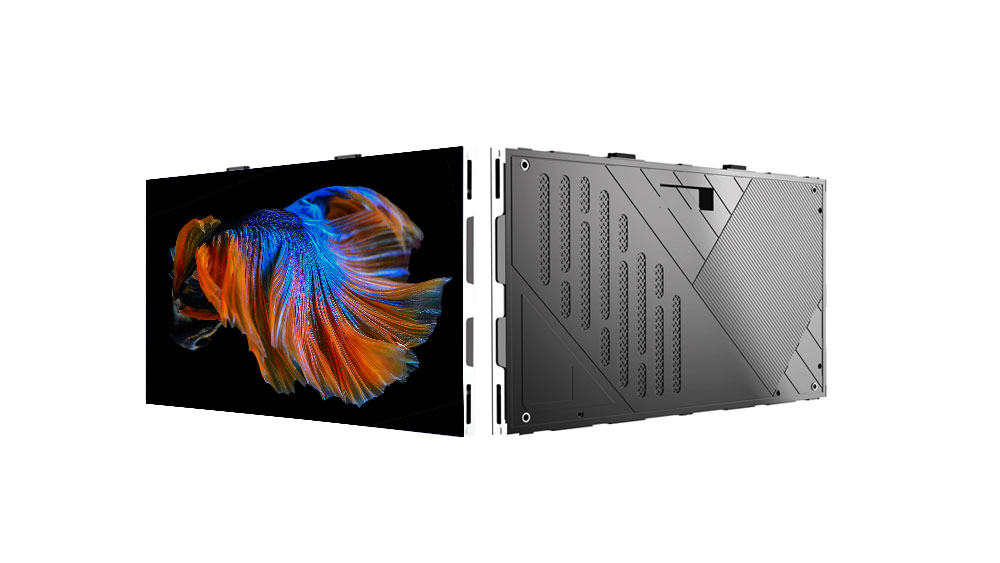

M series COB indoor LED display with a ultra-thin thickness (27.5mm) and super light weight ( 4.5 kg) ,

The cabinet size is standard 600 x 337.5 mm, with a LED module size 300 x 168.75 mm.

Why COB Outperforms Traditional LED?

🛡 Anti-Moisture Protection：IP65 rating for humid/outdoor use

🎯 Pixel-Level Precision：0.625mm-1.875mm pitch options

🔥 Heat Dissipation Master：30% cooler than SMD LEDs

💡 Uniform Brightness：No dark spots, 1000 nits minium

Engineered for Professional Demands

Pixel Density: 2.56 million pixels/m² (P0.625)

Color Gamut: 110% NTSC

Contrast Ratio: 10000:1

Certifications: ISO 13485 (Medical Grade), UL/CE

Where Precision Matters Most?

🏥 Medical Imaging：DICOM-compliant grayscale accuracy

🎬 Broadcast Studios：Real-time HDR video processing

🛡 Command Centers：7x24 continuous operation

🛍 Luxury Retail：Anti-reflective glass for glossy environments

COB vs SMD LED: Technical Comparison

Lifespan comparison: COB 100,000 hours vs SMD 60,000 hours

Maintenance cost: COB modular repair vs SMD single lamp replacement

Visual experience: COB seamless splicing vs SMD visible border

Specification

Pixel Pitch	P 0.625	P 0.78	P 0.9375	P 1.25	P 1.5625	P 1.875
Packing Type	COB
Pixel Density (dots /㎡)	2560000	1638400	1137778	640000	409600	284444
LED Module Resolution	240 x 270	192 x 216	160 x 180	120 x 135	96 x 108	80 x 90
LED Module Size (WxH)	150 x 168.75
LED Cabinet Size (WxH)	600 x 337.5 x 27.5
Cabinet Resolution	960 x 540	768 x 432	640 x 360	480 x 270	384 x 216	320 x 180
LED Module/ Cabinet	4 x 2
Maitenance	Front
Cabinet Material	Die-cast Aluminium
Single Dot Correction	Yes
Brightness (Nits)	≥ 600
Color Temperature (K)	5000 - 12000 Adjustable
Viewing Angle	170°/ 170°
Brightness/color Uniformity	≥ 99.8%
Frame Rate	50/60
Contrast Rate	10000:1
Drive Mode	Constant Current Drive ， 64 Scan		Constant Current Drive ， 60 Scan		Constant Current Drive ， 54Scan	Constant Current Drive ， 45 Scan
Grey Degree	16 Bit
Refresh Rate	3840 Hz
Max Power Rate (W/㎡)	420
Average Power Rate (W/㎡）	80 - 150
Protection Level	IP31
Power	AC 90~264V , 47-63Hz
Work Temerpature / Humidity (℃/RH)	-20 ~ 60 ℃ / 10% ~ 85%
Store Temerpature / Humidity (℃/RH)	-20 ~ 60 ℃ / 10% ~ 85%
Certificate	CCC	CE	RoHS	FCC	CB	TUV
