Designed to enhance any indoor environment, widely used for retail, commercial display, digital signage etc. Our LED displays are built to deliver stunning visuals and reliable performance.
►Ultra-thin (27.6mm thickness), ultra-light (4.5kg/cabinet);

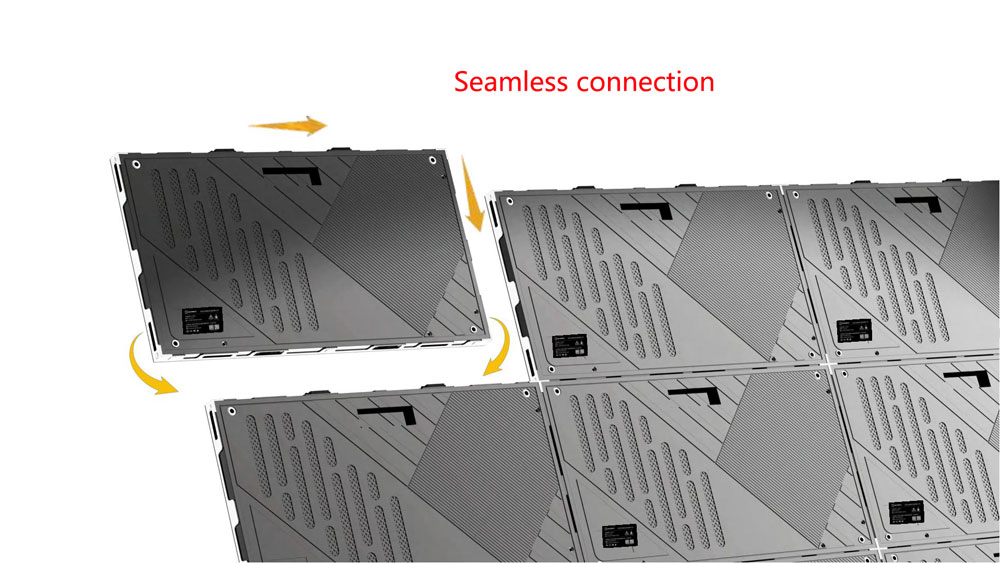

►Seamless, UHD display, more natural color transition;
►3840Hz refresh rate, 16 bit grey,10000:1 contrast rate;

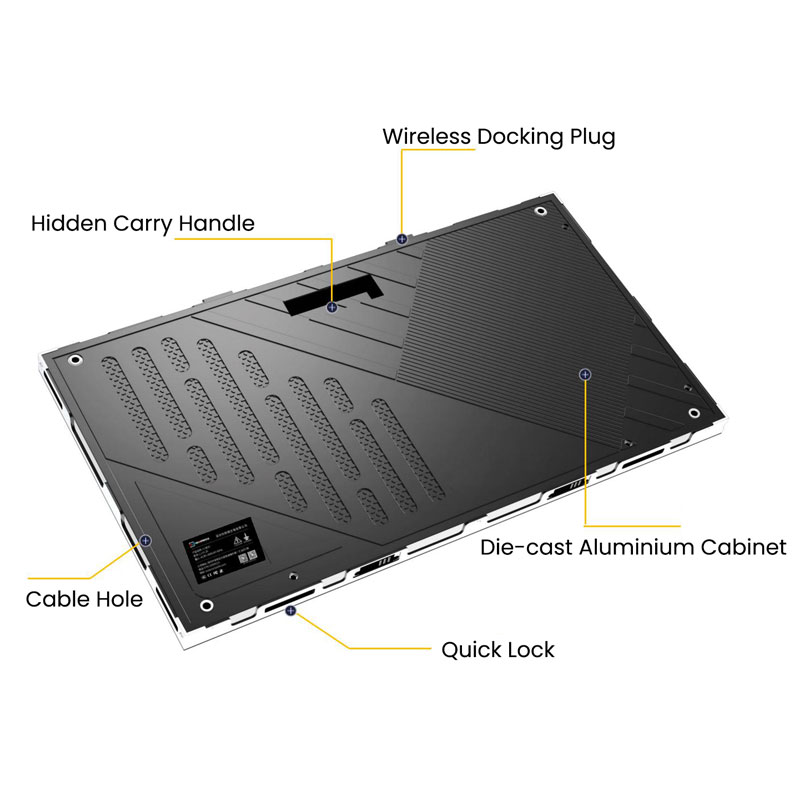

►Die-cast aluminum cabinet, ultra-quiet fanless design;
►Fully front maintenance;
►Wall mount / Hanging installation.

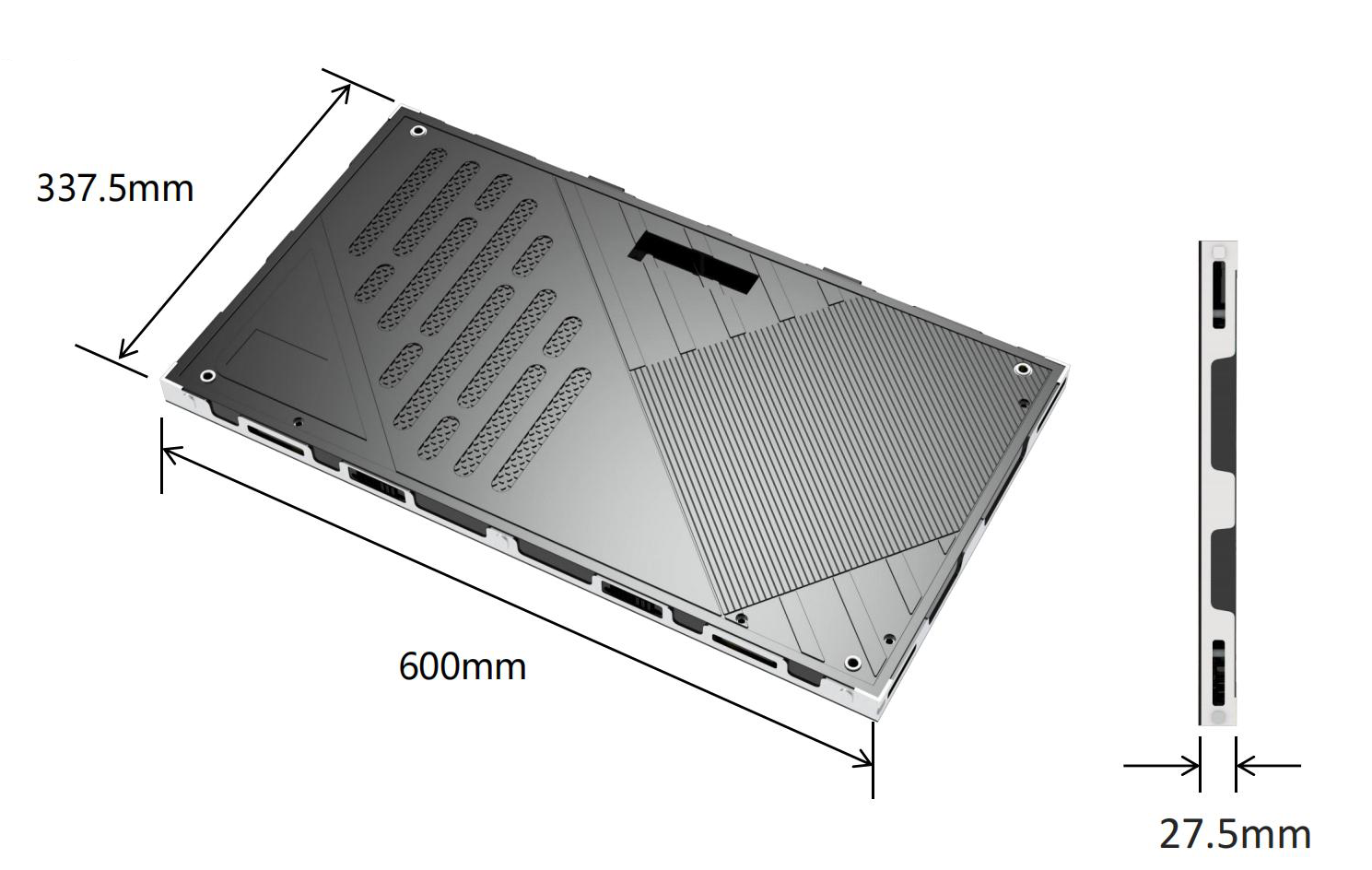

X series fine pitch indoor LED display with a ultra-thin thickness (27.5mm) and super light weight ( 4.5 kg) ,
The cabinet size is standard 600 x 337.5 mm, with a LED module size 300 x 168.75 mm.
Pixel Pitch : P1.25 / P1.56 / P1.875 / P2.5
Key Features
More Vibrat Colors: Wide color gamut + HDR, professional color management technology, makes the display color richer and the color transition more natural.
Wide Viewing Angles: 170° super wide viewing angle ensures clear visibility from multiple angles.

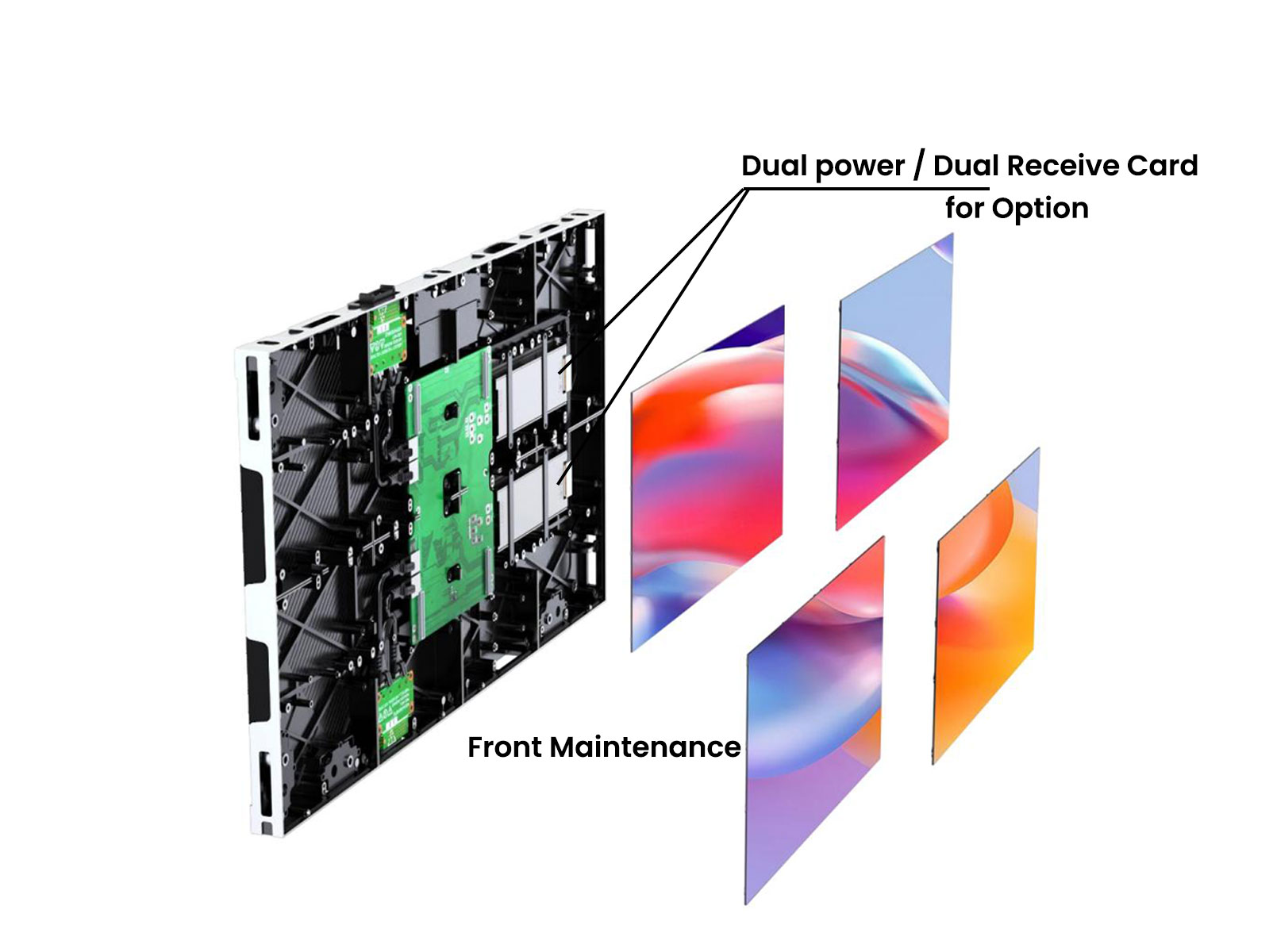

Durable Design: A dual backup version can be configured to ensure uninterrupted power supply and no signal loss, making it more stable and reliable.
Seamless Integration: Compatible with a range of content management systems for hassle-free operation.

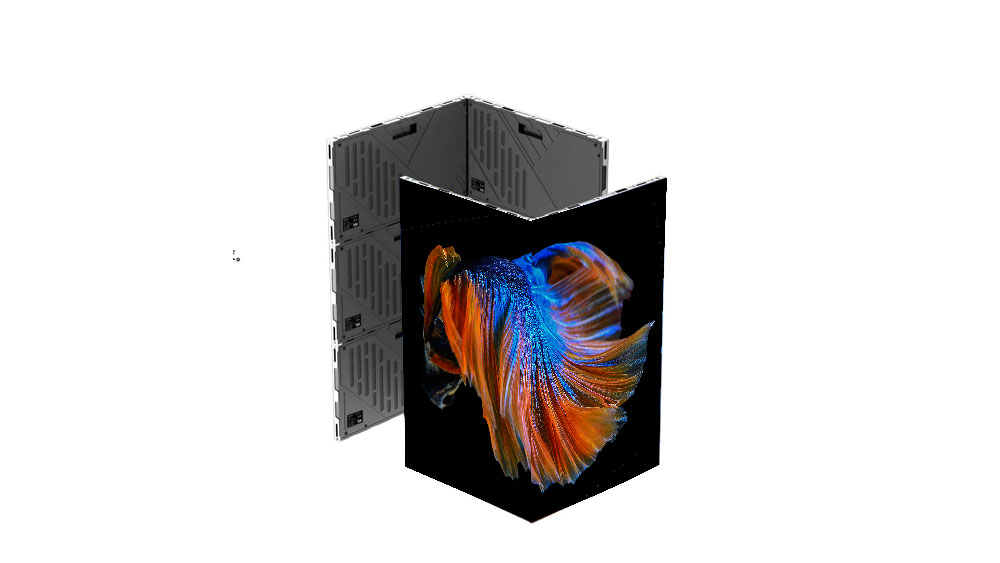

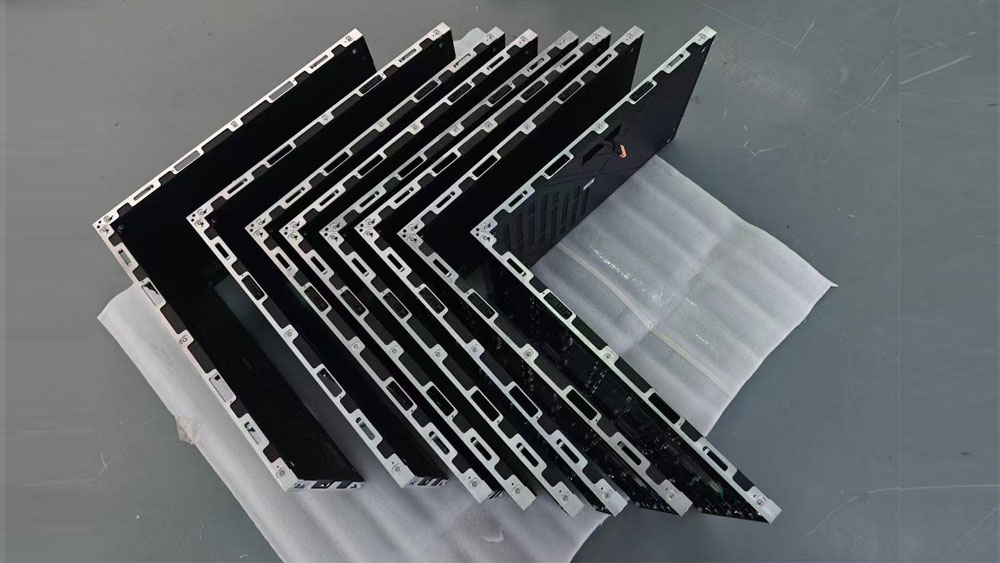

Support right angle / arc angle shape, meet different request on the screen shape design.
Technical Specifications for Indoor Environments
Pixel Pitch: P1.25/P1.5625/1.875/P.5 (Customizable)
Operating Temperature/ Humidity: -20°C to 60°C / 10% ~ 85%
Refresh Rate: 3840Hz for Smooth Video Playback
Certifications: CE, RoHS, UL, ETL
Where Our Fine Pitch Indoor LED Screens Excel

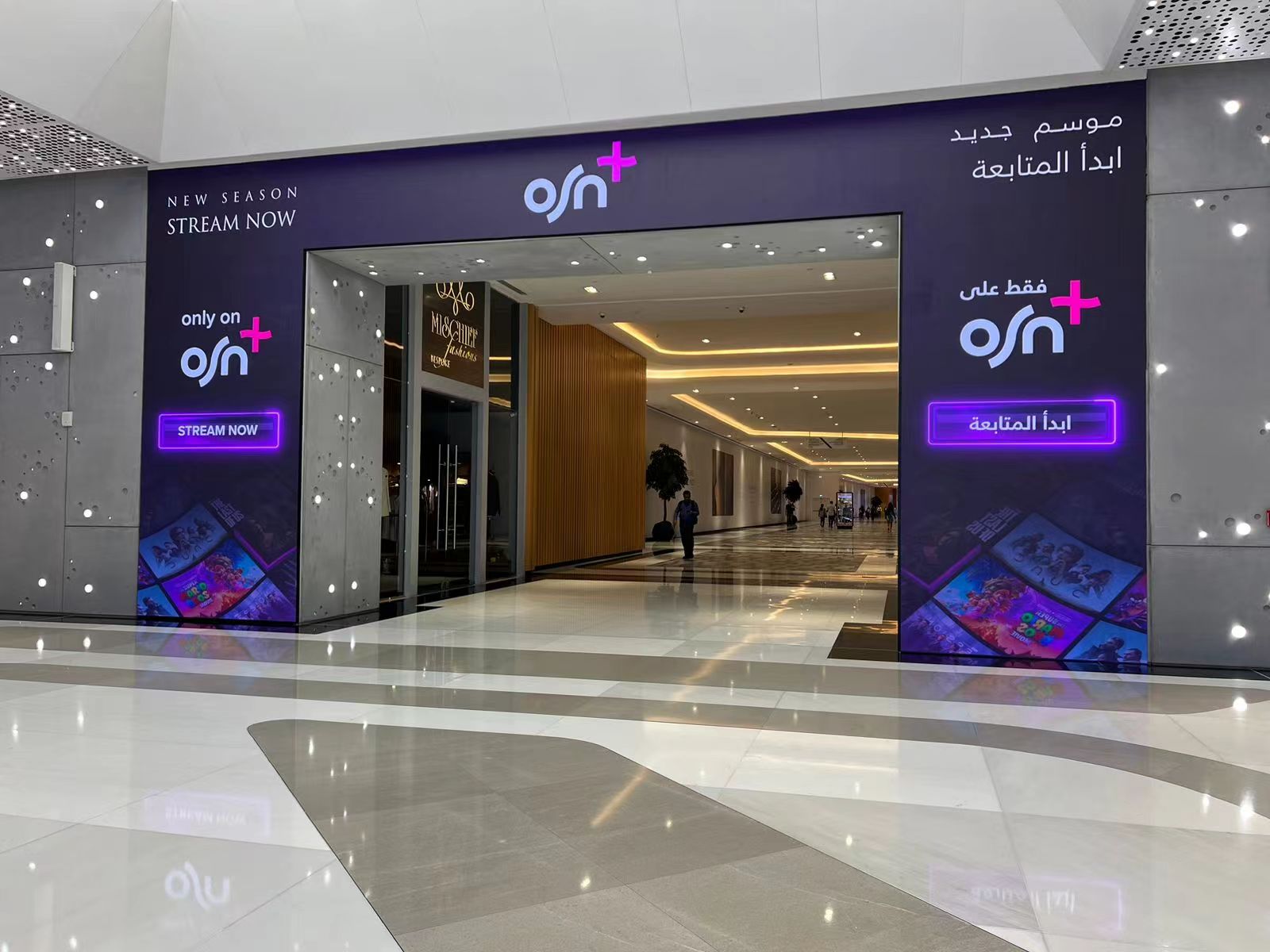

Retail: Enhance your store with eye-catching displays that attract customers and boost engagement.
Corporate Events: Create immersive experiences with high-resolution screens for presentations and conferences.
Digital Signage: Provide real-time information, promotions, and interactive content in public spaces.

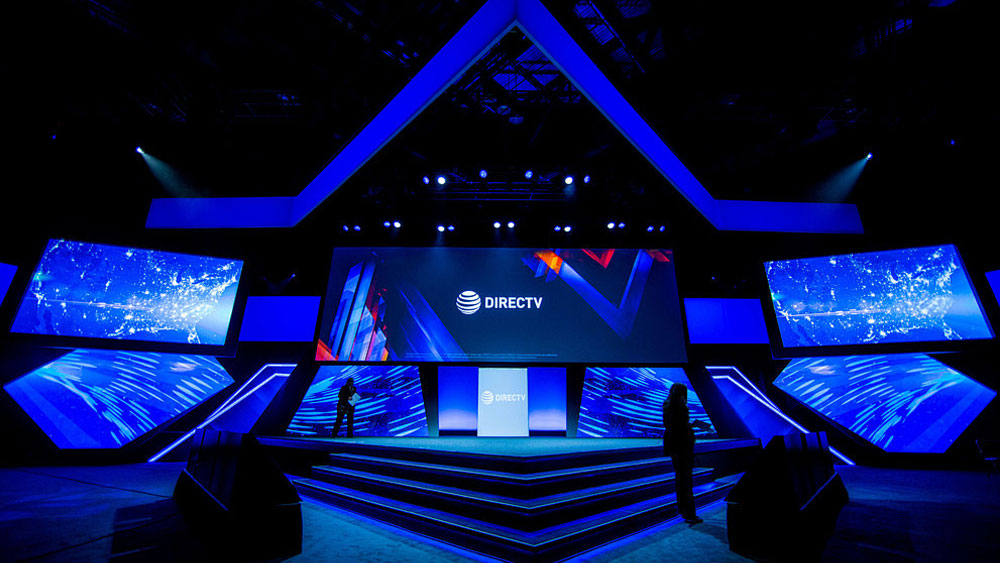

Entertainment: Add a modern touch to theaters, concert venues, and event halls with vibrant LED screens.
Architectural Enhancements: Use LED displays to create unique visual installations and modern aesthetics.
Why Choose Our Indoor LED Displays?
Our Indoor LED Displays combine cutting-edge technology with user-friendly design to deliver the best visual experience. They are built to enhance your space with minimal effort and maximum impact, making them the perfect choice for any indoor application.
Specification :
| Pixel Pitch | P1.25 | P1.5625 | P1.875 | P2.5 |
| LED Type | SMD1010/GOB | SMD100/1212 /GOB | SMD1010/1515/GOB | SMD1515/GOB |
| Pixel Density | 640000 | 409600 | 284444 | 160000 |
| LED Module Resolution | 240 x 135 | 192 x 108 | 160 x 90 | 60 x 135 |
| LED Module Size(WxH) (mm) | 300 x 168.75 | 150 x 337.5 | ||
| LED Cabinet Size (mm) | 600 x 337.5 x 27.5 | |||
| Cabinet Resolution | 480 x 270 | 384 x 216 | 320 x 180 | 240 x 135 |
| Cabinet Made by LED Module | 2 x 2 | 4 x 1 | ||
| Cabinet Weight (kg) | 4.5 | |||
| Maitenance Service | Front | |||
| Cabinet Material | Die-cast Aluminum | |||
| Single Dot Birghtness Correction | Yes | |||
| Color Temperature (K) | 5000 - 12000 Adjustable | |||
| Viewing Angle | 170°/170° | |||
| Brightness/Color Uniformity | ≥ 99.8% | |||
| Contrast | 10000:1 | |||
| Frame Rate | 50/60 | |||
| Drive mode | Constant current drive, 1/45 scan | Constant current drive, 1/48 scan | Constant current drive, 1/45 scan | Constant current drive, 1/30 scan |
| Refresh Rate | 3840 Hz | |||
| Maxium Power Rate (W/㎡） | 350 | |||
| Average Power Rate (W/㎡ | 100 | |||
| Protection Level | IP31 | |||
| Power Supply | AC 90 - 264V, 47-63Hz | |||
| Work Temperature/Humity (℃/RH) | -20°C to 60°C / 10% ~ 85% | |||
| Store Temperature/Humity (℃/RH) | -20°C to 60°C / 10% ~ 85% | |||
| Certificates | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||
If you are interested in any of our products, please feel free to contact us .Our staff will tell you process.
Within 2-3 working days based on our negotiation.
We only supply 100% original new parts ,unused parts.
Yes.Usually, the stock is stable, because of the fluctuant selling, the stock lists are always changing and the stock list cannot be promptly updated. So, please consult the stock situation when you inquiring.
We have QC department and built full quality control system to inspect the items we supplied. If parts are coming from OEM-excess or non-authorized distributor, don’t worry, we are working with testing house CECC and Whitehorse lab for our quality control. All shipment values more than US $500 from BCT will be sent to Whitehorse lab in Hong Kong for visual inspection and drop-shipment. Technical testing can be operated subject to customer requests.
We are LED Display manufacturer from Shenzhen China and ship worwide- if you need more information, like a pricing quota, or you want to discuss ideas for using our LED screen products, feel free to contact us, email us via ellen@zimway.cn or call us on +86 185 6623 9091
